For Isolator to Isolator attachments & Sterilizing Cylinder to Isolator connections.

Transfer Sleeves


Transfer Sleeves


Durable lap-seam seal construction. Made with 20 mil. frosty vinyl. In a variety of diameters and lengths. Reducing sleeves. Custom lengths.

Used for germ-free, gnotobiotic isolator to isolator attachments and sterilizing cylinder to isolator connections.

CBC Germ-free Transfer Sleeves for isolator port to sterilizing cylinder or isolator port to isolator port. Shown is an 18 inch port to 12 inch port reducing sleeve with (2) 1 inch nipples and neoprene stoppers.

CBC Germ-free Transfer Sleeves


7" - 8' long

Custom Lengths

Shown is an 18" port to 12" port reducing sleeve with (2) 1" nipples and neoprene stoppers.

Used for germ-free, gnotobiotic isolator to isolator attachments and sterilizing cylinder to isolator connections.

Download PDF list of Transfer Sleeve sizes and options:


NOTE: CBC will also manufacture custom transfer sleeve sizes and shapes to meet a client's specific requirements.

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Accessories and Components:

CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape

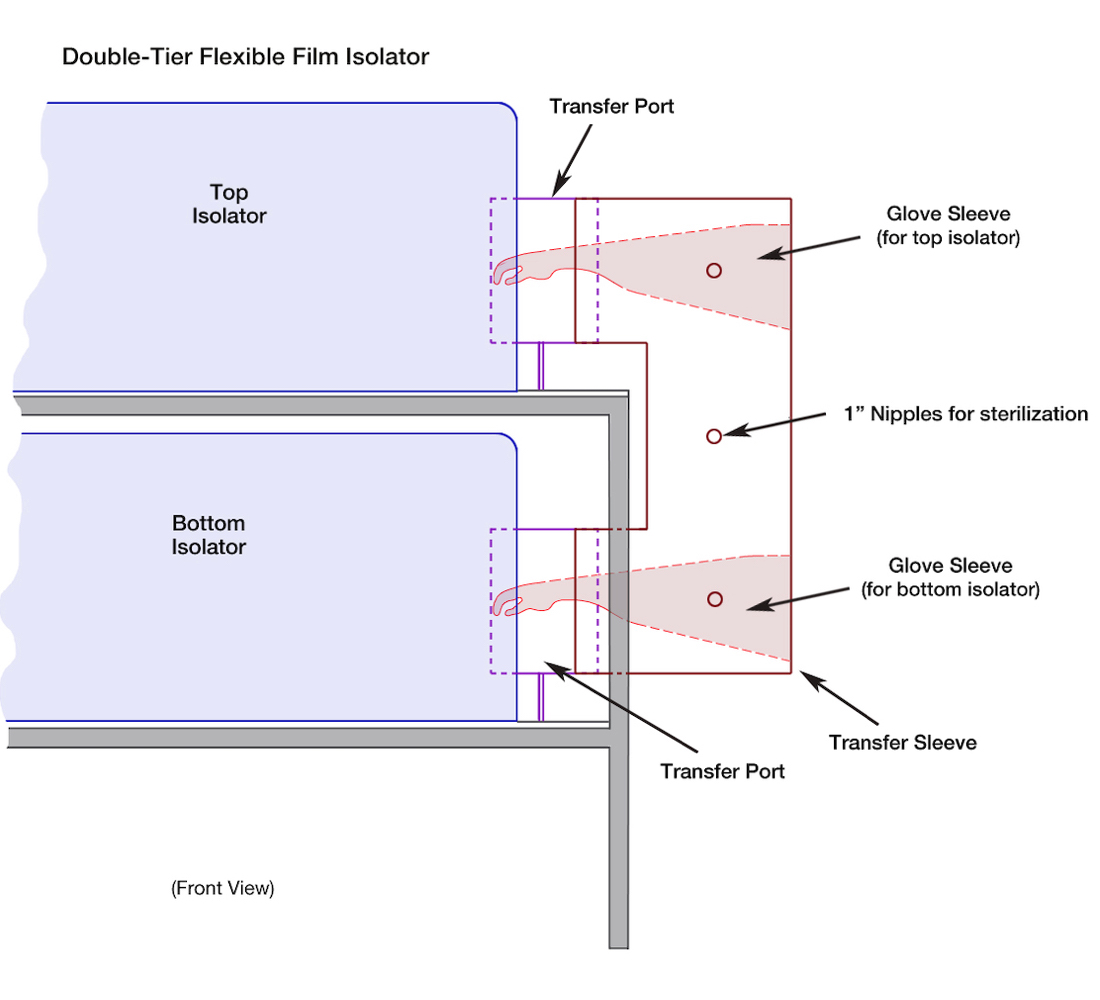

CBC's 2-tier Transfer Sleeve is both simple and economical. It simplifies multi-tiered, germ-free isolator transfers!
2-Tier Transfer Sleeve

20 mil. Vinyl. Lap-seam Seal Construction  Read more

CBC's 2-tier Transfer Sleeve is both simple and economical. It simplifies multi-tiered, germ-free isolator transfers!
Vinyl Tape.
Vinyl Tape

1" wide. 36 yards.  Read more

For wrapping filter media around sterilizing cylinders and filters.
Mylar Tape.
Mylar Tape

1" wide. 36 yards.  Read more

For attaching mylar film to sterilizing cylinders and isolator filters before autoclaving.
Sterilizing Autoclave Cylinder for water, bedding, cages and other components used in animal research.
DW4 filter media for isolator filters and steriling cylinders.
Tear-Aid for minor flexible film canopy and glove repairs.
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.
CBC Germ-free Transfer Sleeves for isolator port to sterilizing cylinder or isolator port to isolator port.

Germ-free Transfer Sleeves

In a variety of diameters and lengths. Custom sizes and shapes.

Durable lap-seam seal construction. Made with 20 mil. frosty vinyl.
