Designed to Offer Researchers Complete Environmental Control.

Pig Tub Isolators


Gnotobiotic Pig Tub Isolator Systems


New larger design offers more space for piglets and allows piglets to grow bigger for long-term research. Other sizes for poultry and calves.

Positive Pressure or Negative Pressure


Flexible Film Pig Tub Isolators

Positive Pressure Negative Pressure

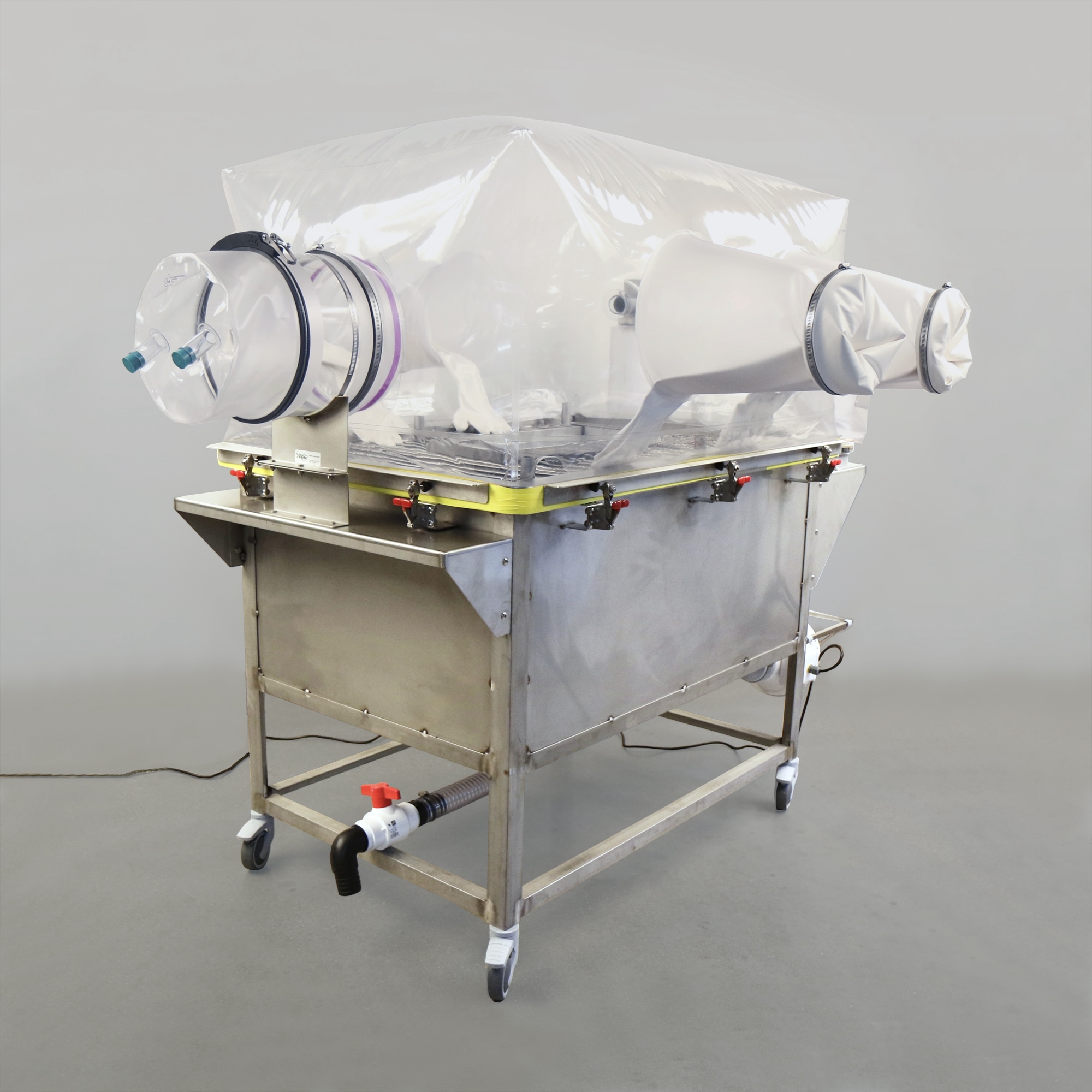

NEW LARGER SIZE: 48" x 32" - Suitable for up to 4 piglets.


Designed to offer researchers complete environmental control.

Positive Pressure Pig Tub Isolator:

Product protection is provided using positive pressure isolators. Positive pressure isolators create pressurized chambers in which the air pressure inside the chamber is greater than the ambient room pressure. In the event of a breach, the air inside the isolator will be pushed out keeping contaminants out of the isolator, hence protecting the product inside the unit.


Negative Pressure Pig Tub Isolator:

Personnel protection and product containment is provided using negative pressure isolators. With negative pressure isolators the air is pulled out of the isolator, which creates a lower pressure inside the chamber than the ambient room pressure. An external frame is needed to prevent the chamber from collapsing. In the event of a breach, the surrounding room air is pulled into the isolator preventing any product inside the isolator from leaving the isolator (often called a containment isolator).


Pig Tub Isolator Features:

  • Durable 20 mil vinyl isolator
  • Stainless steel construction
  • Stainless steel feeder trays with tubes so piglets can be fed without reaching into stall
  • Stainless steel removable floor grates
  • Stainless steel divider panels (allow one large stall or up to four individual stalls)
  • Stainless steel top grate (sits on top of feeder trays and divider panels)
  • Stainless steel work pan
  • Stainless steel tubular support frame and fittings (for negative pressure model)
  • Two-way locking wheels
  • 5" diameter inlet and outlet filters (Includes: stands, media and filter cover)
  • (2) pairs of Mega CBC glove extensions for maximum reach, better worker dexterity and less stress on isolator.
  • (2) pairs of 15 mil Hypalon/CSM dry box gloves with glove ring kit for attaching gloves to isolator (other types available)
  • 12" acrylic transfer port
  • Port to isolator neoprene band and clamp for sealing isolator to transfer port
  • (2) 1" neoprene stoppers (other types available)
  • (1) outside transfer port cap with nipples
  • (1) inside transfer port cap
  • (1) patent clamp
  • Blower and manifold system. (two blowers for negative pressure model)
  • Exhaust airflow valve (with negative pressure model)
  • Inlet airflow valve
  • Magnehelic gauge (with negative pressure model)
  • Acrylic brace for exhaust filter (with negative pressure model)
  • Drain valve at bottom for tub wash down

New blower motor attachment design reduces isolator vibrations by over 50% and enhances animal health.

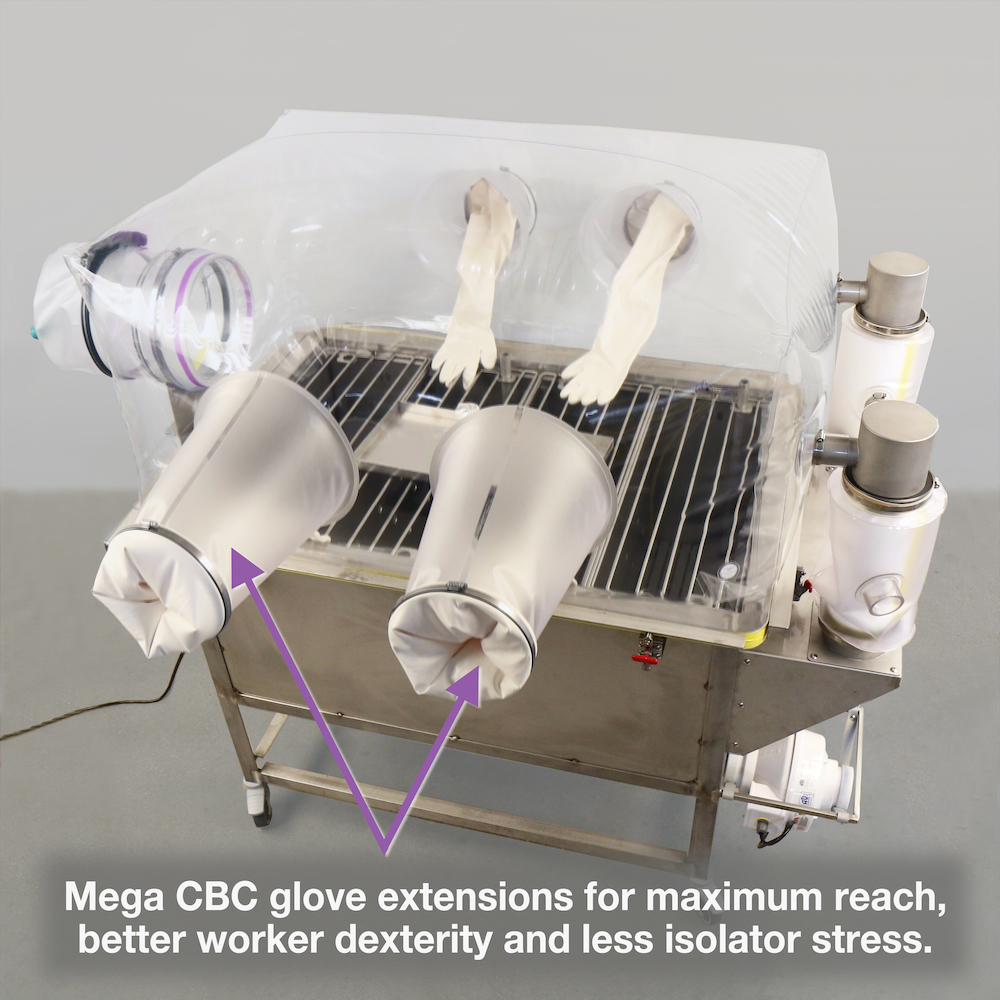

Mega CBC glove extensions for maximum reach, better worker dexterity and less stress on isolator.

Mega CBC glove extensions for maximum reach, better worker dexterity and less stress on isolator.

Mega CBC glove extensions for maximum reach, better worker dexterity and less stress on isolator. - Read more

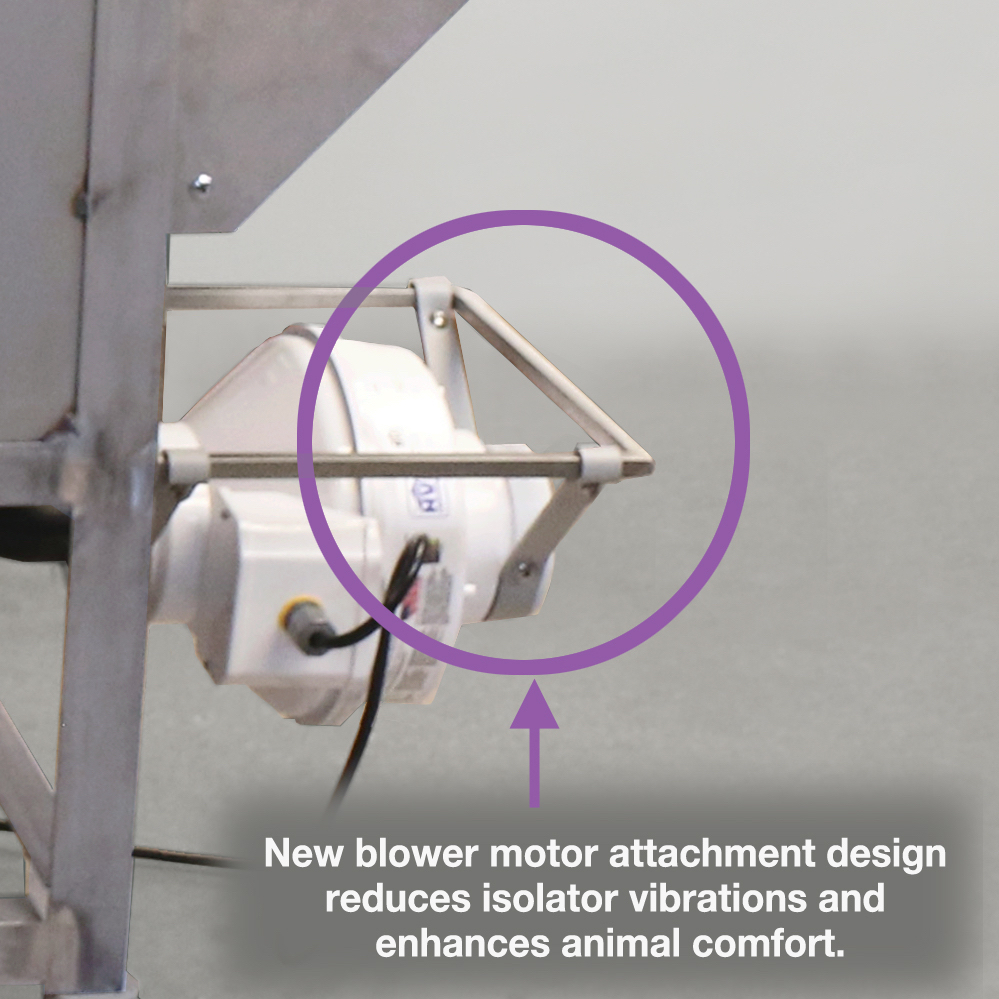

New blower motor attachment design reduces vibrations and enhances animal health.

New blower motor attachment design reduces vibrations and enhances animal health. - Read more

Download Printable Flyer

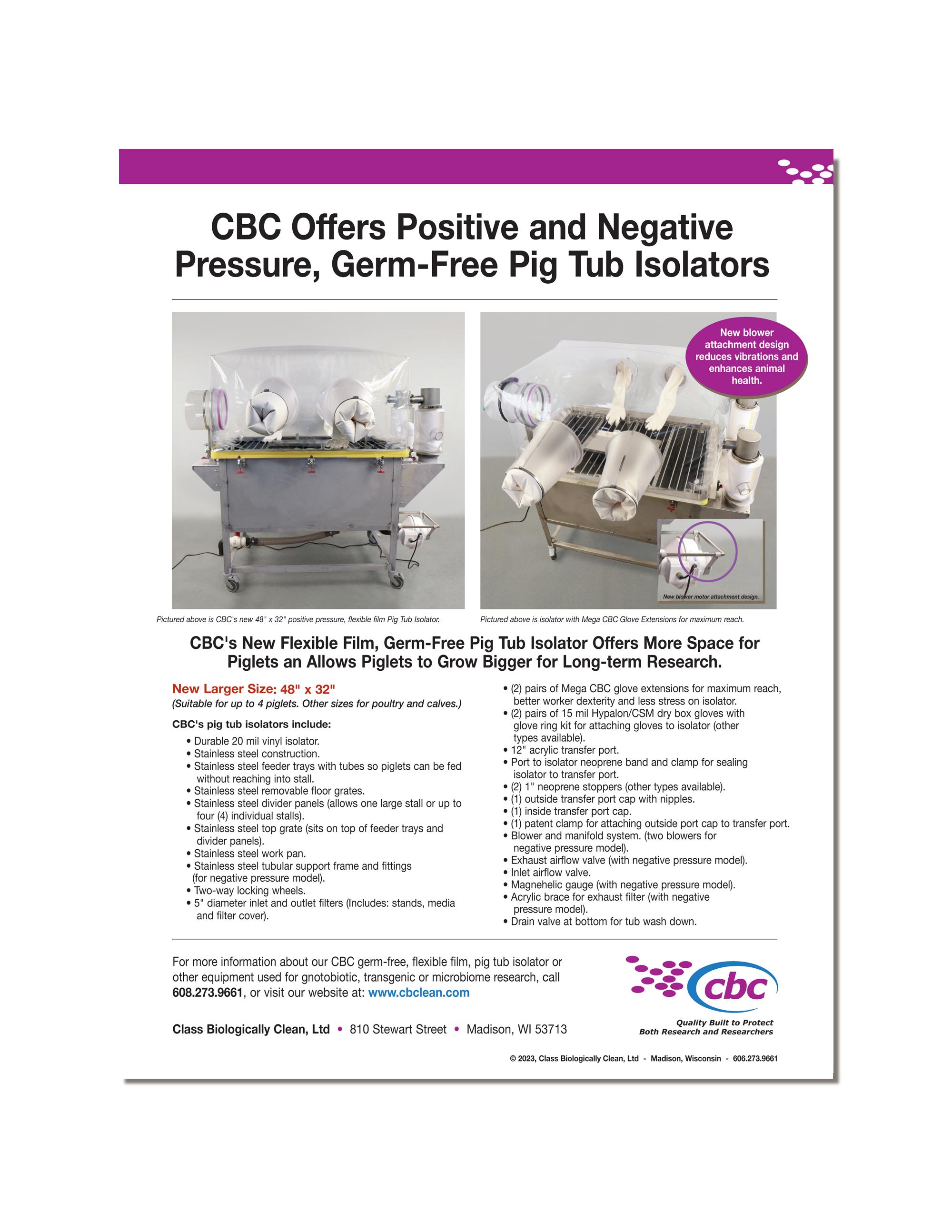

Download a printable flyer about the CBC flexible film, Pig Tub isolator system.

Download Printable PDF

Download Printable (EU) PDF

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Accessories and Components:

CBC 9-cage isolator rack for Single- and Double-tier isolator systems.
Internal 9-Cage Isolator Rack

9-cage is standard. 5-cage racks for CBC's Quad isolator system. Custom sizes are available.  Read more

CBC's internal isolator cage racks are easier and faster to assemble!
CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.

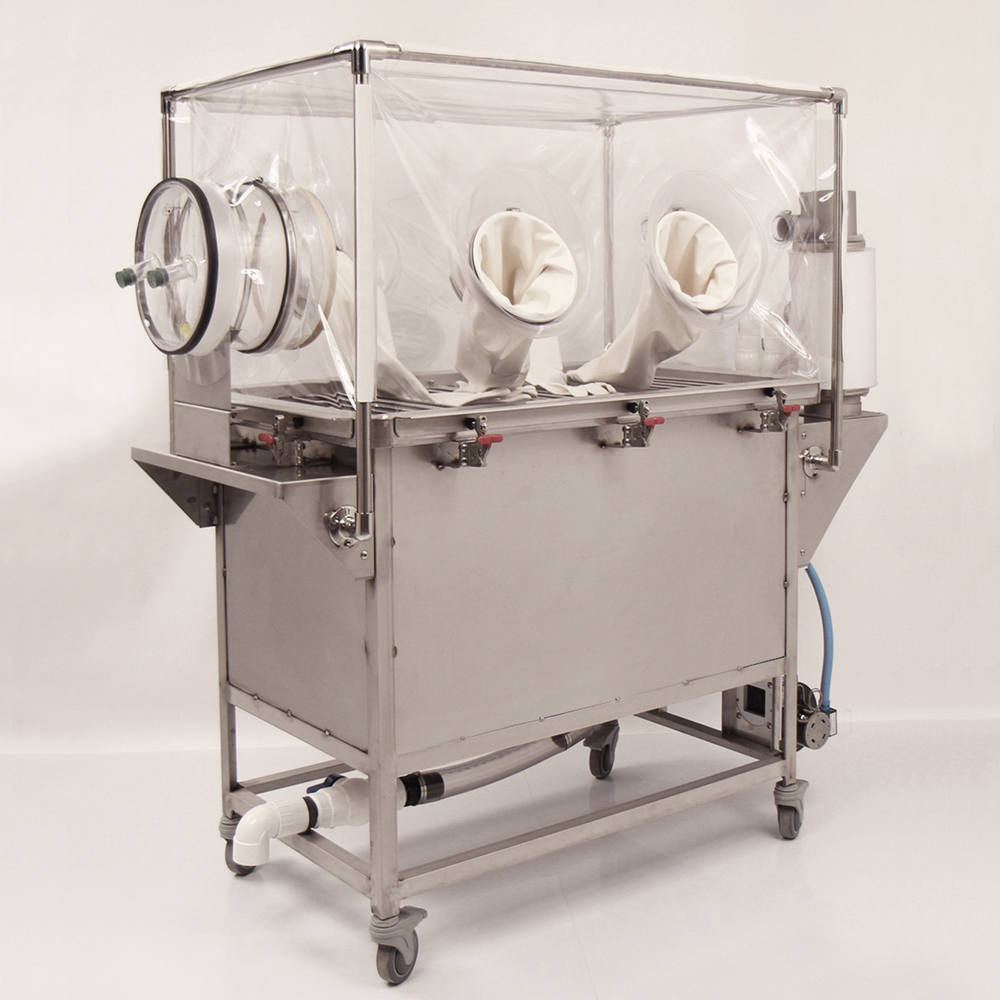

Negative pressure flexible film Pig Tub Isolators for up to 4 germ-free, gnotobiotic  piglets.

Pictured above is a Negative Pressure, Flexible Film Pig Tub Isolator

For gnotobiotic pig research.

Suitable for up to 4 piglets. Other sizes for poultry and calves.
