Sterilizing/Decontamination of Isolators.

Atomizer, Compressor and Cart


Atomizer, Compressor and Cart


For Sterilizing/Decontamination of gnotobiotic, germ-free isolator canopies.

(atomizer, compressor and cart can be purchased together or separately)

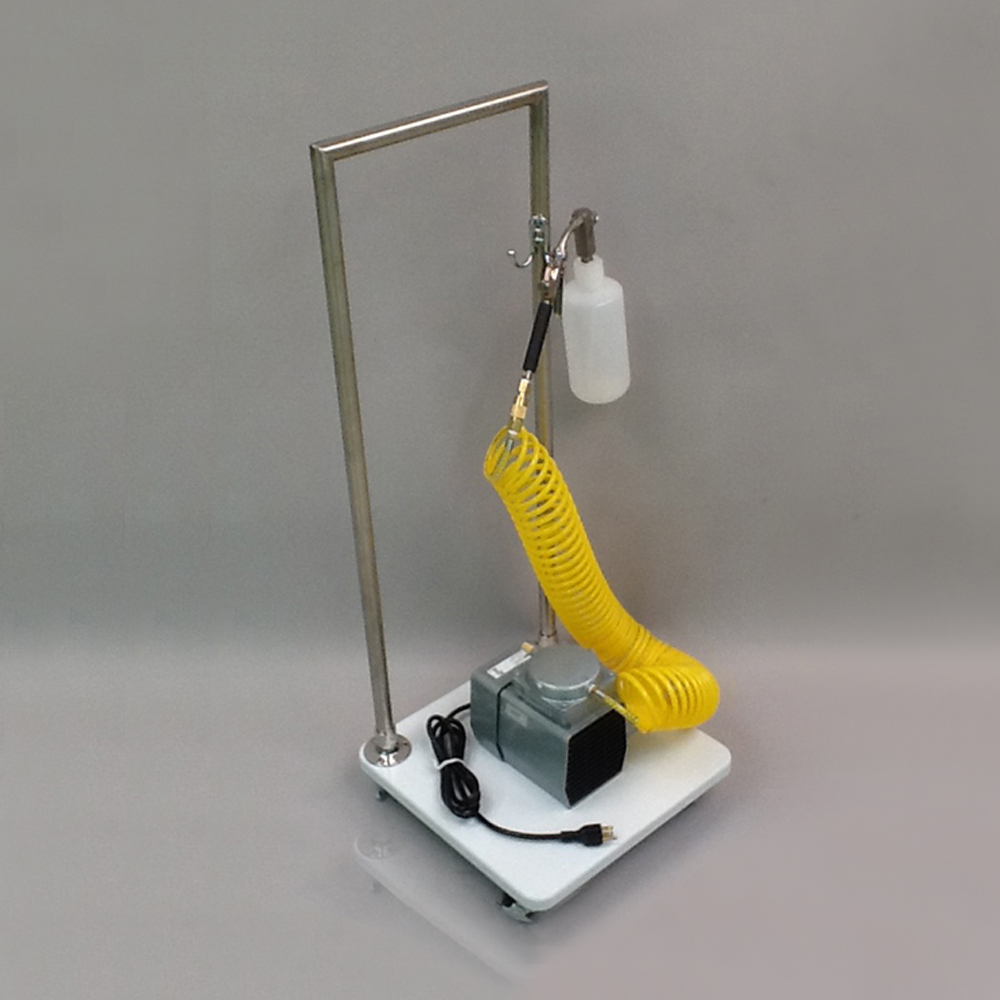

Atomizer, compressor and cart used to sterilize/decontaminate isolator canopies. NOTE: Coiled hose is no longer used.

Atomizer, Compressor and Cart


A complete sterilizing/decontamination system

Components are also sold separately.

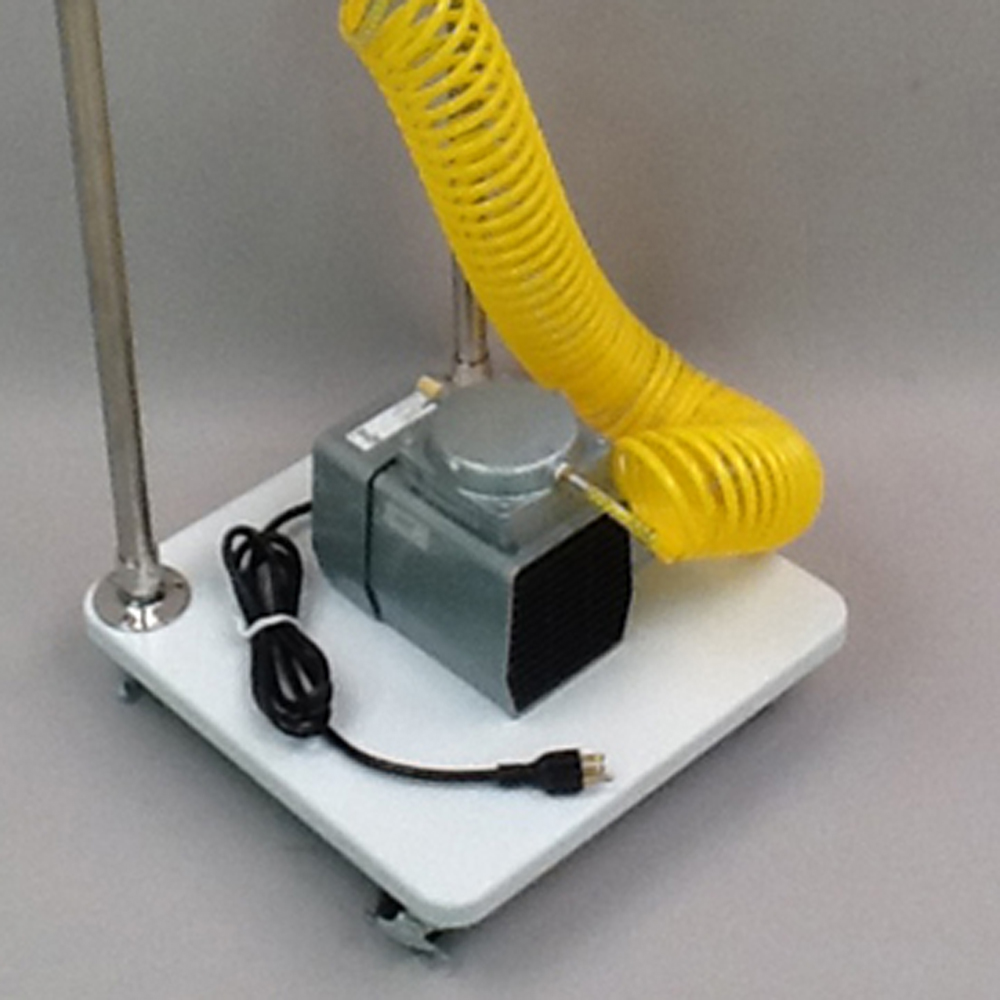

1/3 HP atomizer compressor on cart with 20ft. 1/4 inch diameter hose.
1/3 HP atomizer compressor on cart with 20ft. 1/4" hose.

Note: Image shows a coiling hose that is no longer used.

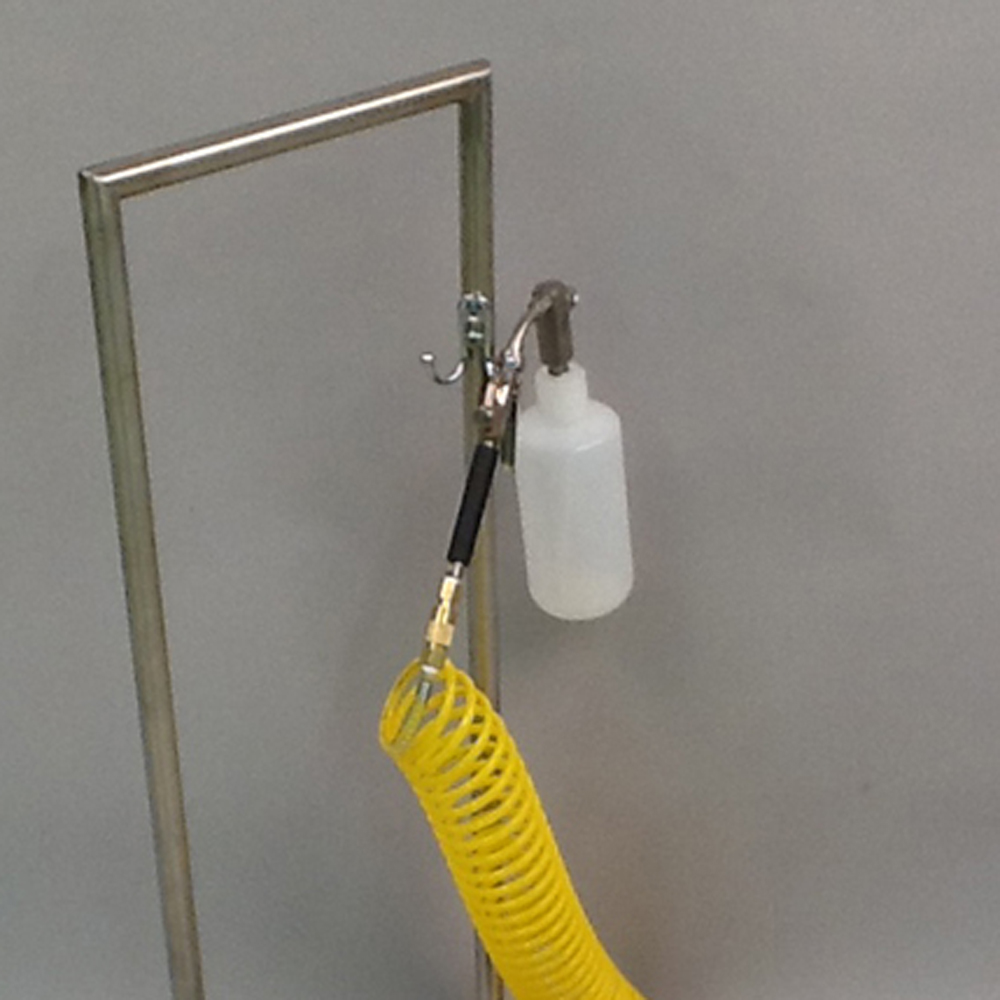

Stainless steel atomizer with 32 fluid ounces/1000 ml plastic bottle.
Stainless steel atomizer with 32 fluid ounces/1000 ml plastic bottle

Note: Image shows a coiling hose that is no longer used.


Features Include:


  • Stainless steel Atomizer with 32 fluid ounces/1000 ml plastic bottle.
  • 20ft. 1/4" D hose with:
       - Swivel fittings to prevent hose twisting.
       - Reinforced ends with resisters to prevent hose kinking and increase hose life.
  • Noncorrosive polypropylene cart with stainless steel handle and hook.
  • Oilless diaphragm vacuum pump for continuous oil free air production.
       - 1/3 HP
       - 110 volt (230 volt available)
       - 4.8 amps
       - 50/60 Hz
       - Maximum pressure: 60 psi (413,685 PA)
  • Lockable wheels.
  • Pressure guage and regulator, and emergency relief valve.

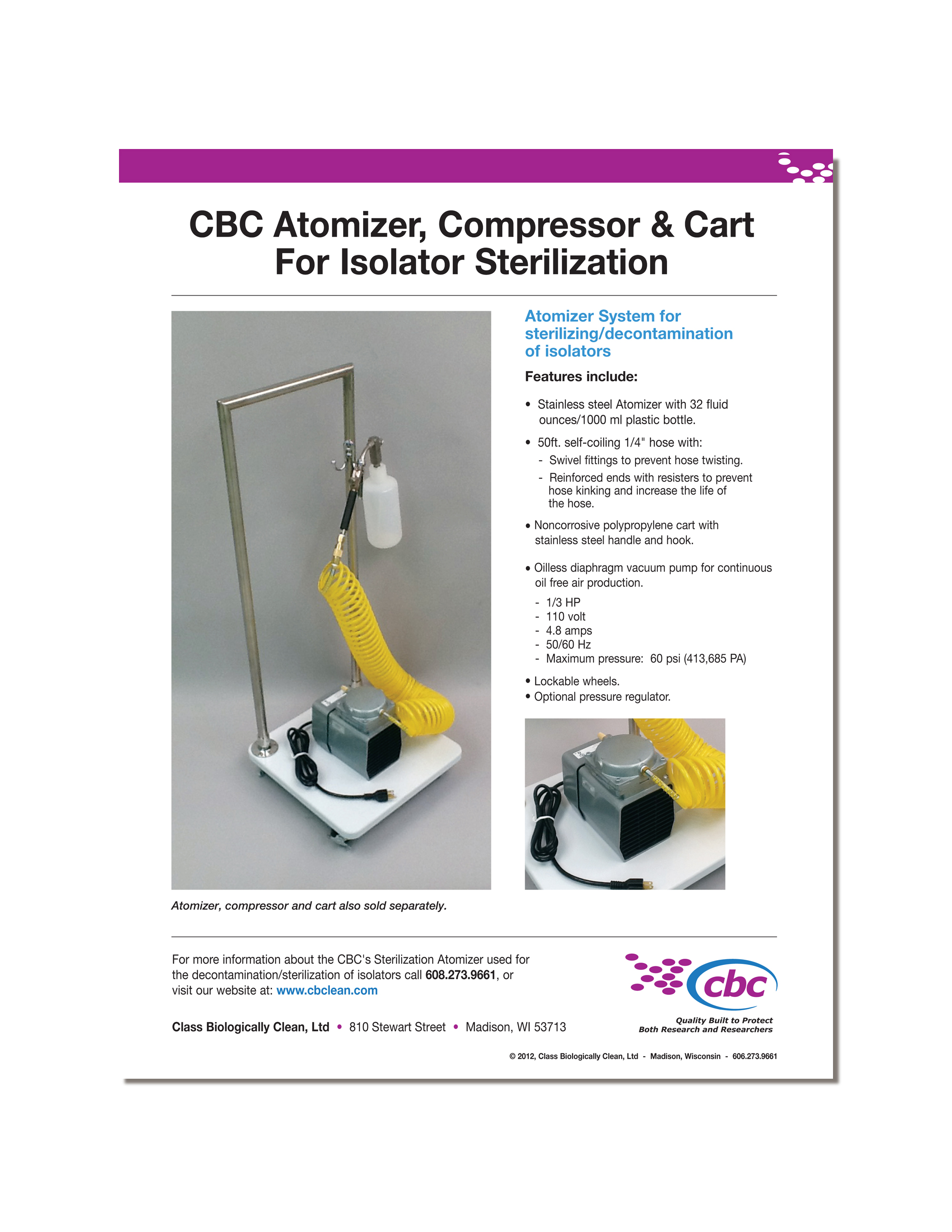

Download a printable flyer about the CBC atomizer used to sterilize/decontaminate isolator canopies. Click here to download flyer.

Download Printable Flyer

Download a printable flyer about the CBC Atomizer system.

Download Printable PDF

Download Printable (EU) PDF

Accessories and Components:

CBC Autoclave Standard Sterilizing Cylinders for sterilizing water, bedding, cages, etc... for gnotobiotic animal research.
CBC Standard Sterilizing Cylinders

The CBC Stainless Steel Standard Sterilizing Cylinder provides both capacity and performance. for sterilizing water, bedding, cages, etc... for gnotobiotic animal research.  Read more

12" dia. x 24" long. 18" dia. x 30" long. Custom sizes available on request.
5 inch Diameter Isolator Filters for CBC Quad and Quarantine Isolators.
5" Diameter Isolator Filters

Standard on most CBC Isolator systems.  Read more

With lower inlet port and and upper outlet port. Custom sizes available on request.
Vinyl Tape.

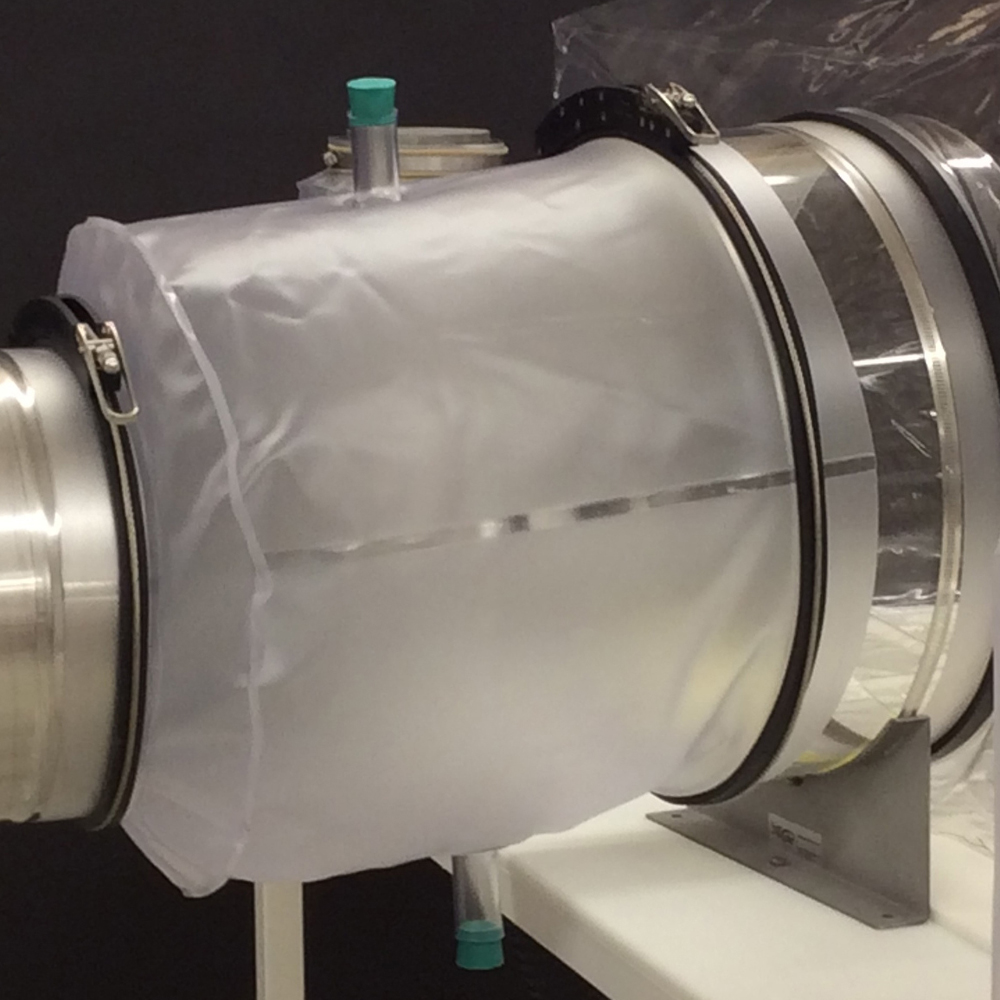

Transfer Sleeves

7" - 8' long. Custom sizes. Reducing sleeves.  Read more

Used for Isolator to Isolator attachments and Sterilizing Cylinder to Isolator Connections..
Germ-free Shipper Sleeve.
Germ-free Shipper Sleeve

These Germfree Shipper Sleeves are designed to safeguard your animal's health status during shipping.  Read more

Outer Shipping Carton is IATA Approved. EU version is available.
CBC germ-free replacement isolator canopies for existing frames and filter systems using CBC's unique lap seam seal process.

Germ-Free Isolator Replacement Canopies

Using CBC's Unique Lap Seam Seal Process!

CBC will make you a durable 20 mil vinyl or polyurethane replacement canopy to fit your existing germ-free isolator frame, filter system and port size.

Learn more

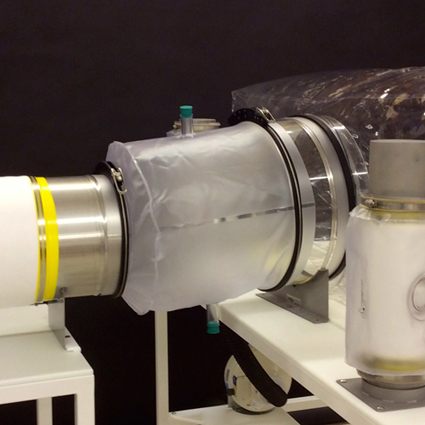

Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.

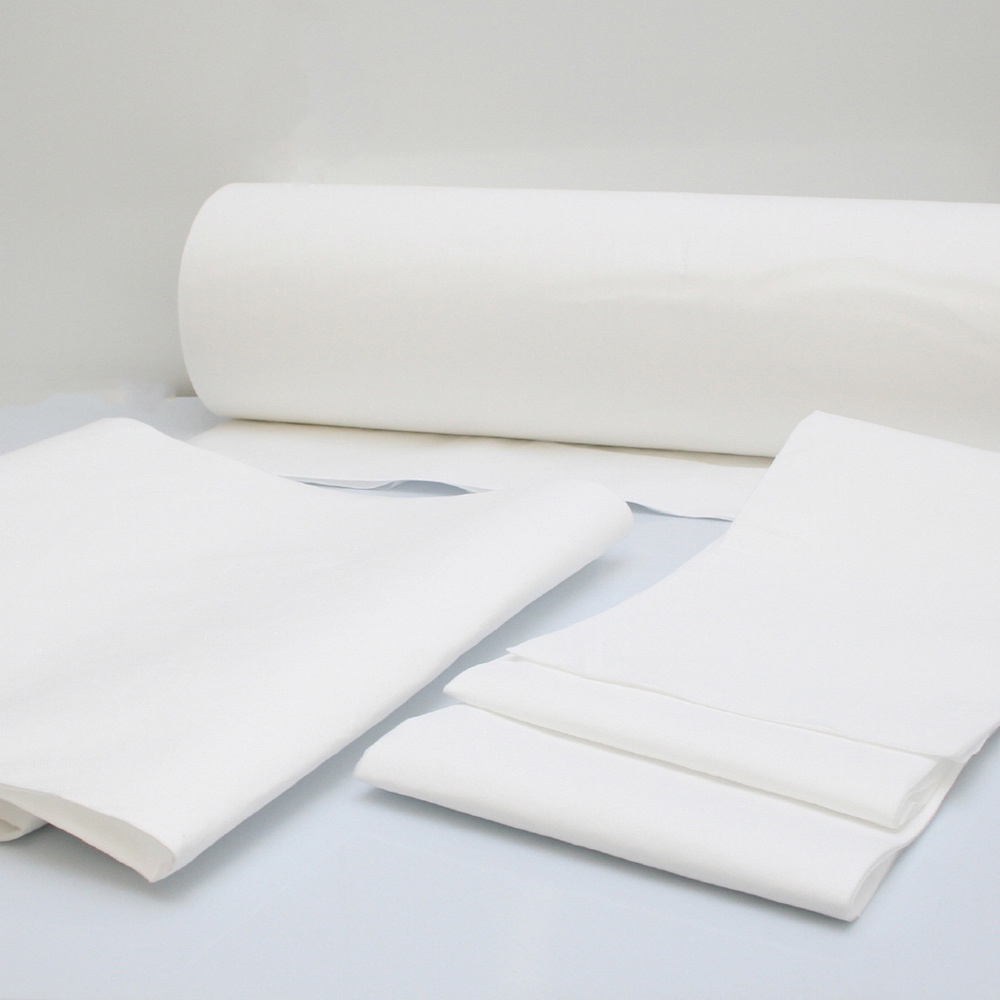

DW4 filter media for isolator filters and steriling cylinders.

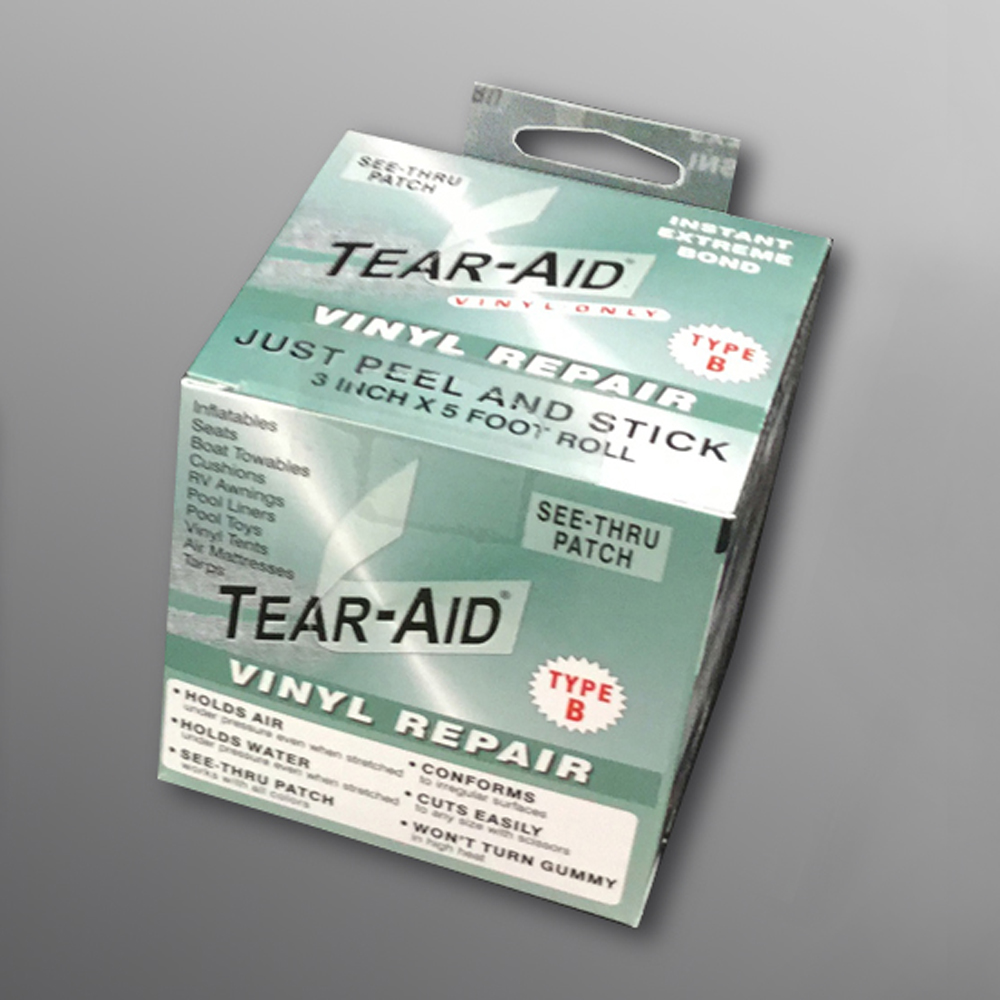

Tear-Aid for minor flexible film canopy and glove repairs.

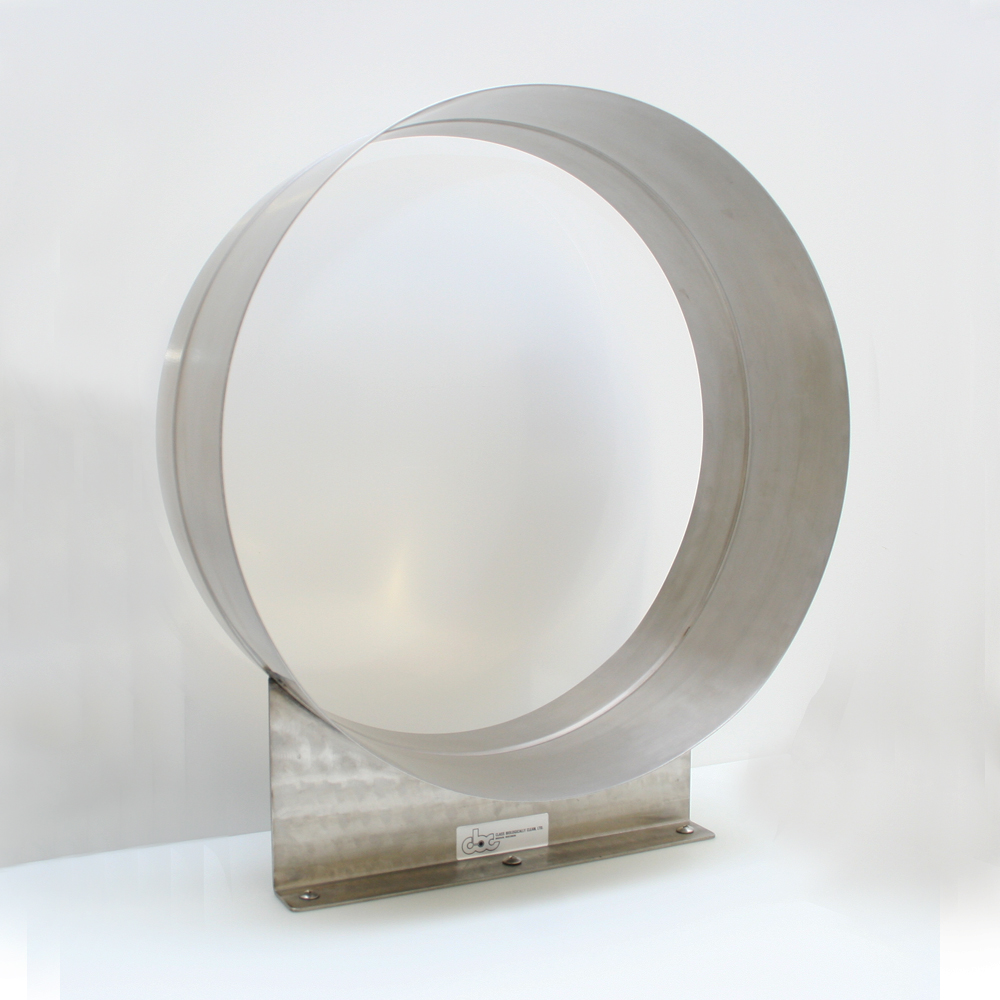

Stainless steel, acrylic polypropolene transfer ports.

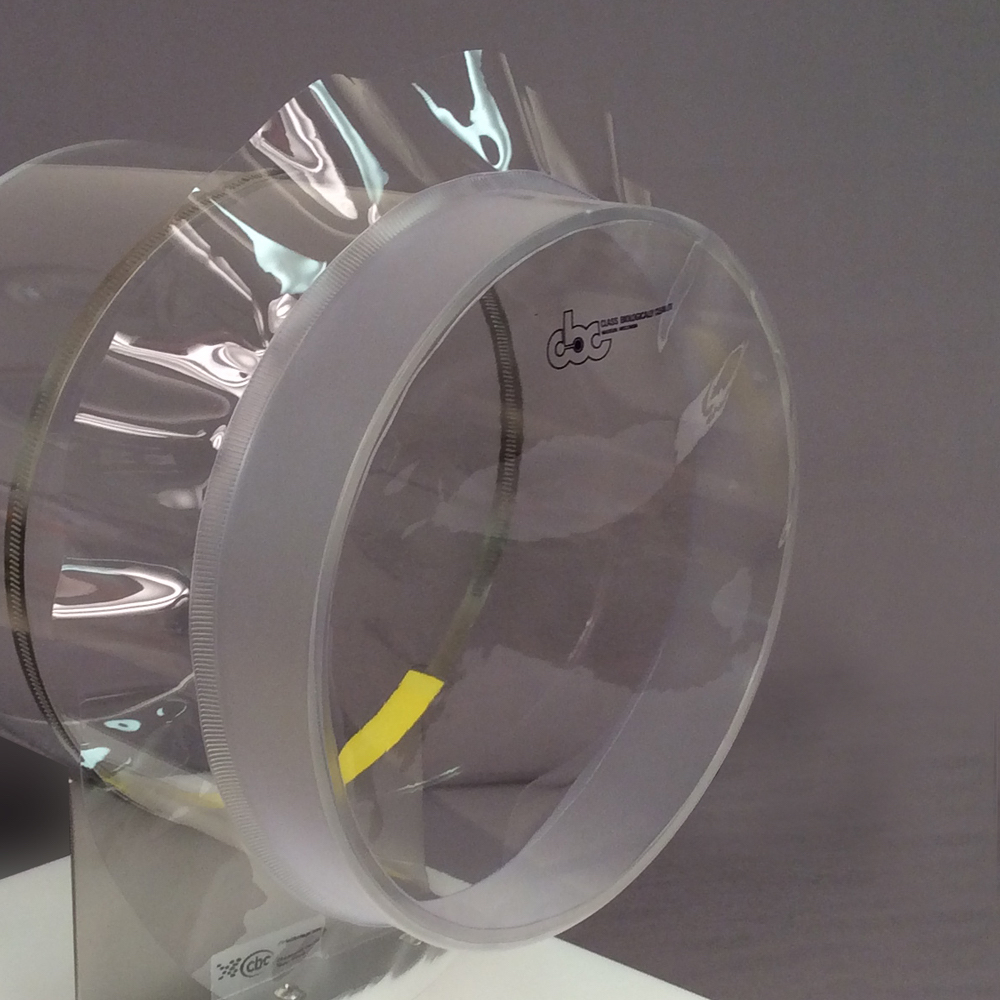

Transfer port caps with and without flanges.

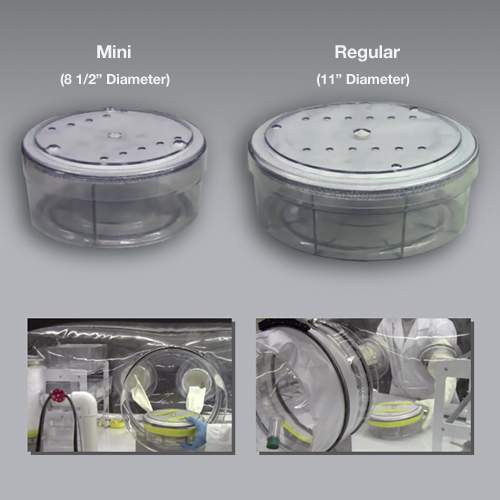

Transdisk allows you to transfer mice without a transfer sleeve.
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.
Above: video on how to unplug a clogged atomizer nozzle.
