Breed Your Own Colony of Germ-Free Rodents.

Breeder Isolators


Breeder Isolator Systems


Breed Your Own Colony of Germ-Free Rodents.

32- or 50-Cage Germ-Free Breeder Isolator With or Without a Polypropylene Holding Box.

Gnotobiotic islolator systems for rodents.
Breed your own colony of germ-free rodents with CBC's flexible film Breeder isolator systems.

Flexible Film Breeder Isolators

• 32-Cage
• 50-Cage

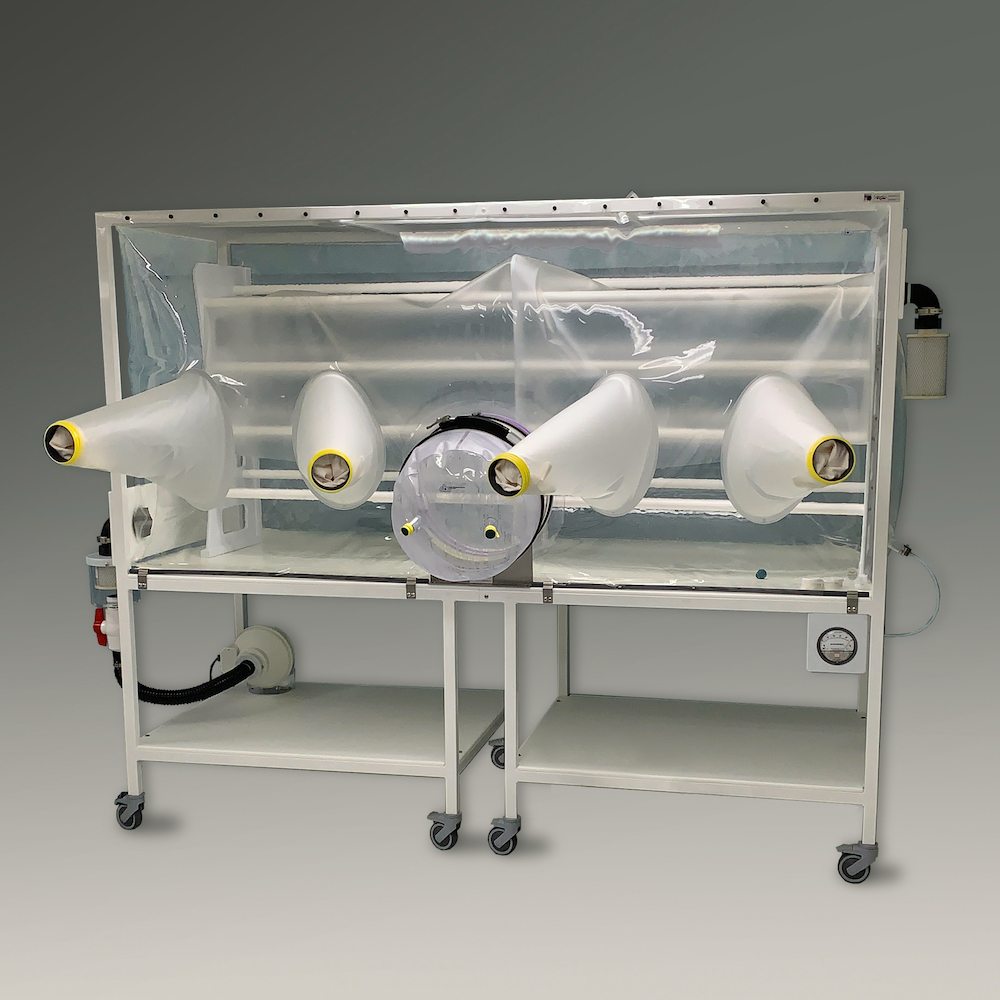

Breed your own colony of germ-free rodents with CBC's flexible film, breeder isolators systems. Shown is the 50-cage CBC Breeder Isolator without polypropylene holding box.



Our New Breeder Isolator without the polypropylene holding box can be either positive pressure or negative pressure.

Our new 50-cage Breeder Isolator without the polypropylene holding box is 96" wide x 36" deep x 45" tall. It has a frame construction that allows the isolator to also be used as a negative pressure unit.


Breeder Isolator System Features:

  • 1 1/2" steel powder coated single shelf frame to prevent bending or warping.
  • Two-way locking wheels.
  • Storage shelves.
  • Blower and manifold system.
  • Durable 20 mil urethane isolator.
  • 20 mil urethane floor mat protector for inside the isolator.
  • 5" x 8" and 5" x 4" round HEPA filters (Option for cylinder filters).
  • (2) pair of 12" oval glove sleeves.
  • (2) pair of Nitrile hand gloves with glove ring kit for attaching gloves to isolator (other types available).
  • 18" stainless steel transfer port.
  • Port to isolator neoprene band and clamp for sealing isolator to transfer port.
  • (2) 1" neoprene stoppers (other types available).
  • (1) internal rack (32 or 50 cages)
  • (1) outside transfer port cap.
  • (1) inside transfer port cap.
  • (1) Patent clamp for attaching outside port cap to transfer port.
  • Isolator pressure gauge.
New CBC breeder isolator without the polypropylene holding box come with all the components and accessories to establish a fully functional germ-free, gnotobiotic lab that offers complete environmental control for gnotobiotic, microbiome and other research using mice or other rodents. Click here to download flyer.

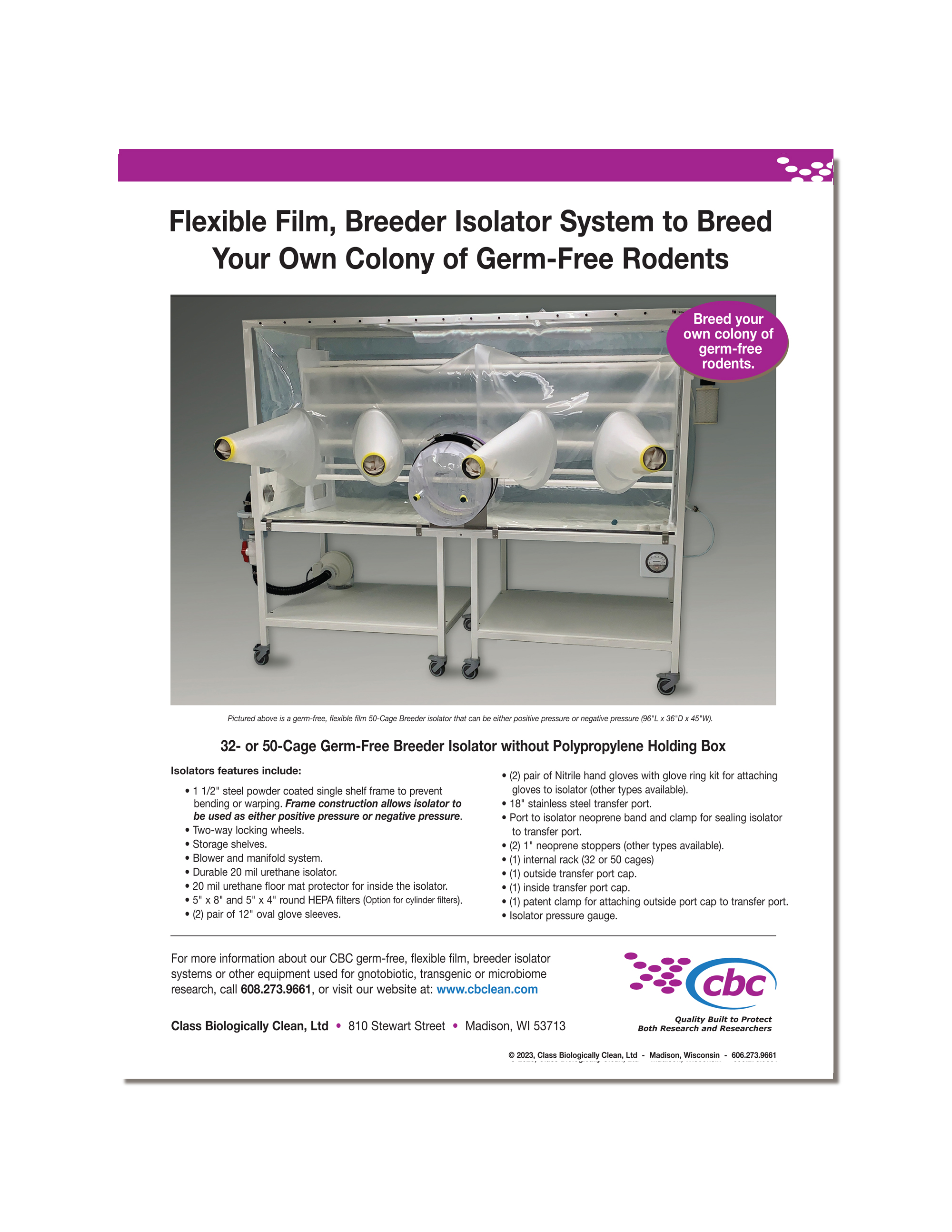

Download Printable Flyer

Download a printable flyer about the CBC flexible film, breeder isolator system without the polypropylene holding box.

Download Printable PDF

Download Printable (EU) PDF

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Accessories and Components:

The CBC Breeder Isolators come with either an internal 32- or 50-cage rack.

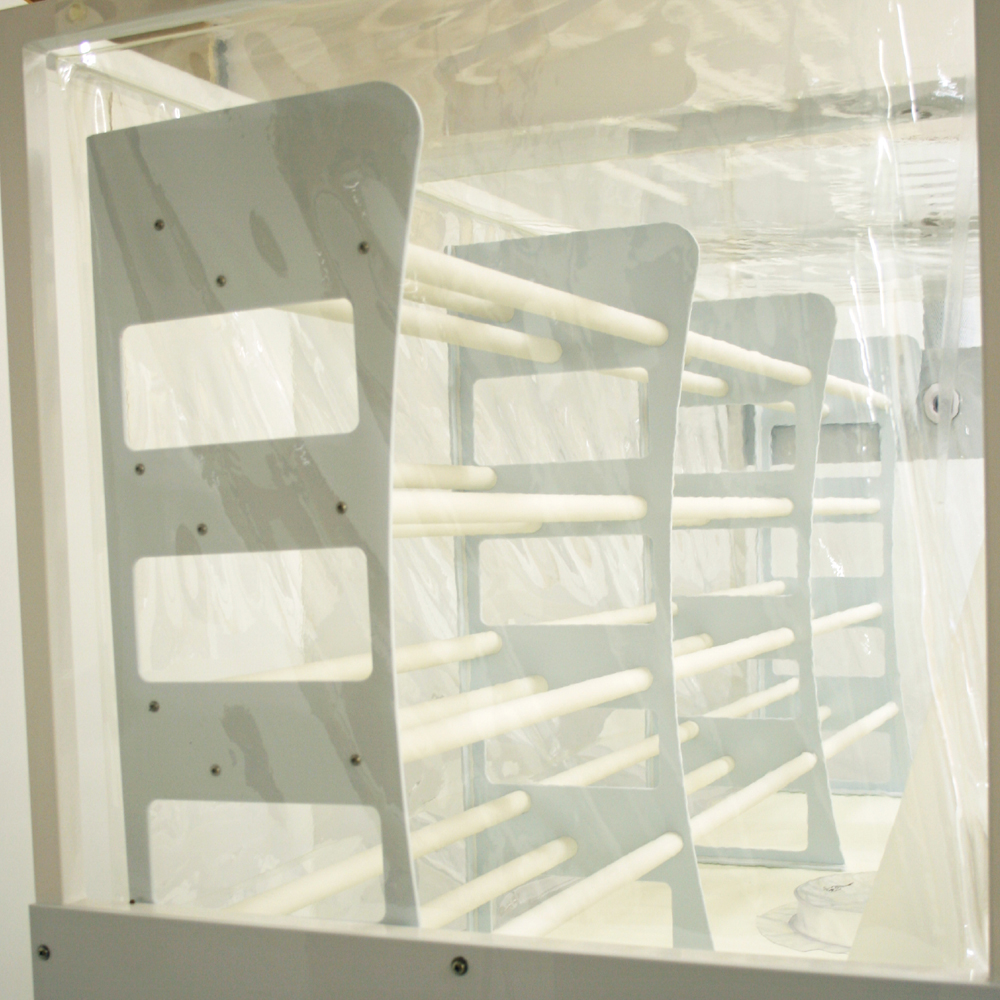

50-Cage Internal Isolator Rack

32- and 50-cage racks for breeder isolators. 9-cage is standard. 5-cage racks for CBC's Quad isolator system. Custom sizes are available.  Read more

CBC's internal isolator cage racks are easier and faster to assemble!
CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape
Transfer Sleeves used for isolator to isolator attachments and sterilizing cylinder to isolator connections.
Sterilizing Autoclave Cylinder for water, bedding, cages and other components used in animal research.
Pre-cut filter media for sterilizing cylinders and isolator filters.
Stainless steel, acrylic polypropolene transfer ports.
Transfer port caps with and without flanges.
Transdisk allows you to transfer mice without a transfer sleeve.

Optional Adjustable Frame

For easier accessibility. The frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).

Tje optional CBC frame goes up or down 30 inches, allowing isolator technicians easier access to the top tier isolator(s).
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.

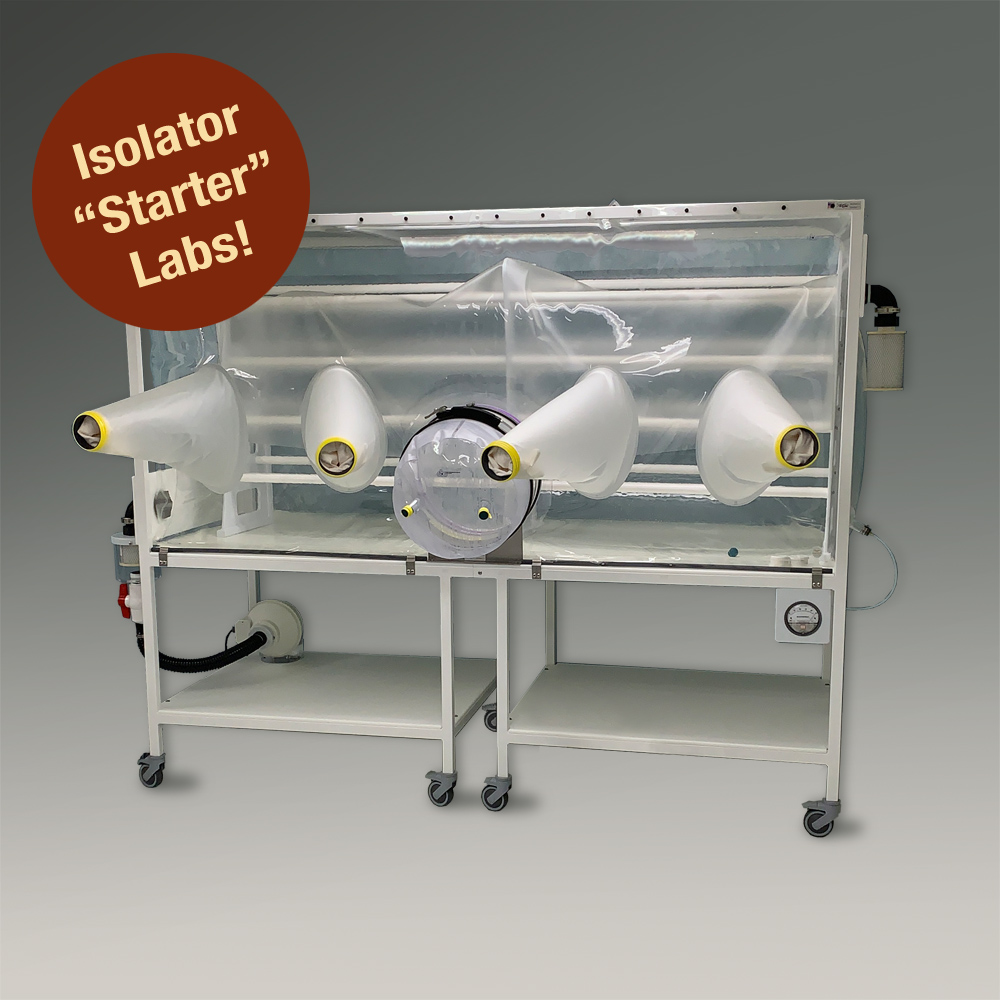

CBC Breeder Isolator Starter Lab packages come with all the accessories and components required for researchers to establish a germ-free, gnotobiotic lab. For breeding your own germ-free mice or other rodents for gnotobiotic research.

Breeder Isolator (without Polypropylene Holding Box) "Starter Lab" Packages

Breed your own germ-free rodent colony. Can be either a positive pressure or negative pressure unit.

CBC New Breeder Isolator "Starter Lab" packages come with all the accessories and components required for researchers to establish a germ-free, gnotobiotic lab..   More Information


CBC Polypropylene Holding Box Breeder Isolator Starter Lab packages come with all the accessories and components required for researchers to establish a germ-free, gnotobiotic lab. For breeding your own germ-free mice or other rodents for gnotobiotic research.

Polypropylene Holding Box Breeder Isolator "Starter Lab" Packages

Breed your own germ-free rodent colony.

CBC Polypropylene Holding Box Breeder Isolator "Starter Lab" packages come with all the accessories and components required for researchers to establish a germ-free, gnotobiotic lab..   More Information
