Designed to Offer Researchers Complete Environmental Control.

Semi-Rigid Isolators

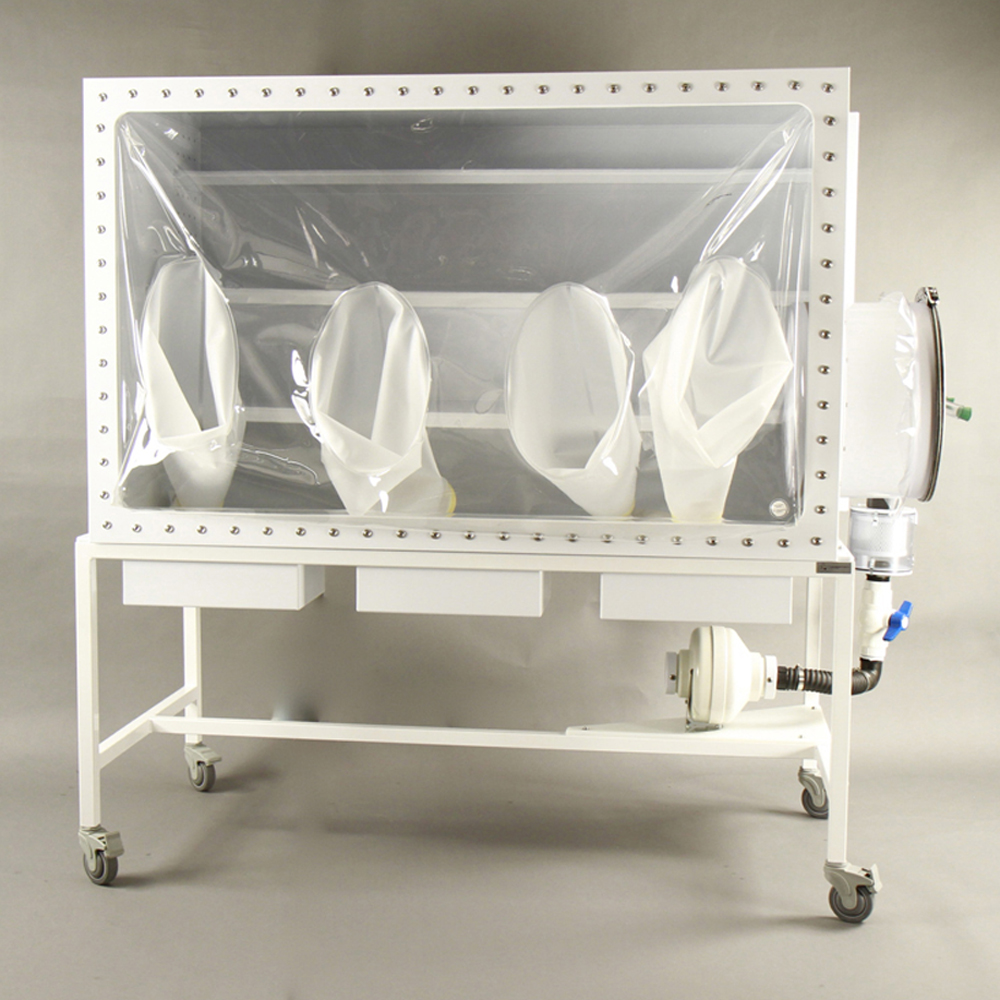

Semi-Rigid Isolator Systems


Each system comes with a blower system that can be converted from positive to negative pressure.

CBC offers a variety of semi-rigid isolator systems. These systems are made with durable polypropylene and an expandable urethane glove panel.

Gnotobiotic islolator systems for rodents.

Semi-Rigid Isolators

Positive Pressure Negative Pressure

For gnotobiotic, microbiome, microbial, altered Schaedler flora and other research that requires a controlled environment.

Germ-Free Semi-Rigid Isolators are Designed to Offer Researchers Complete Environmental Control.

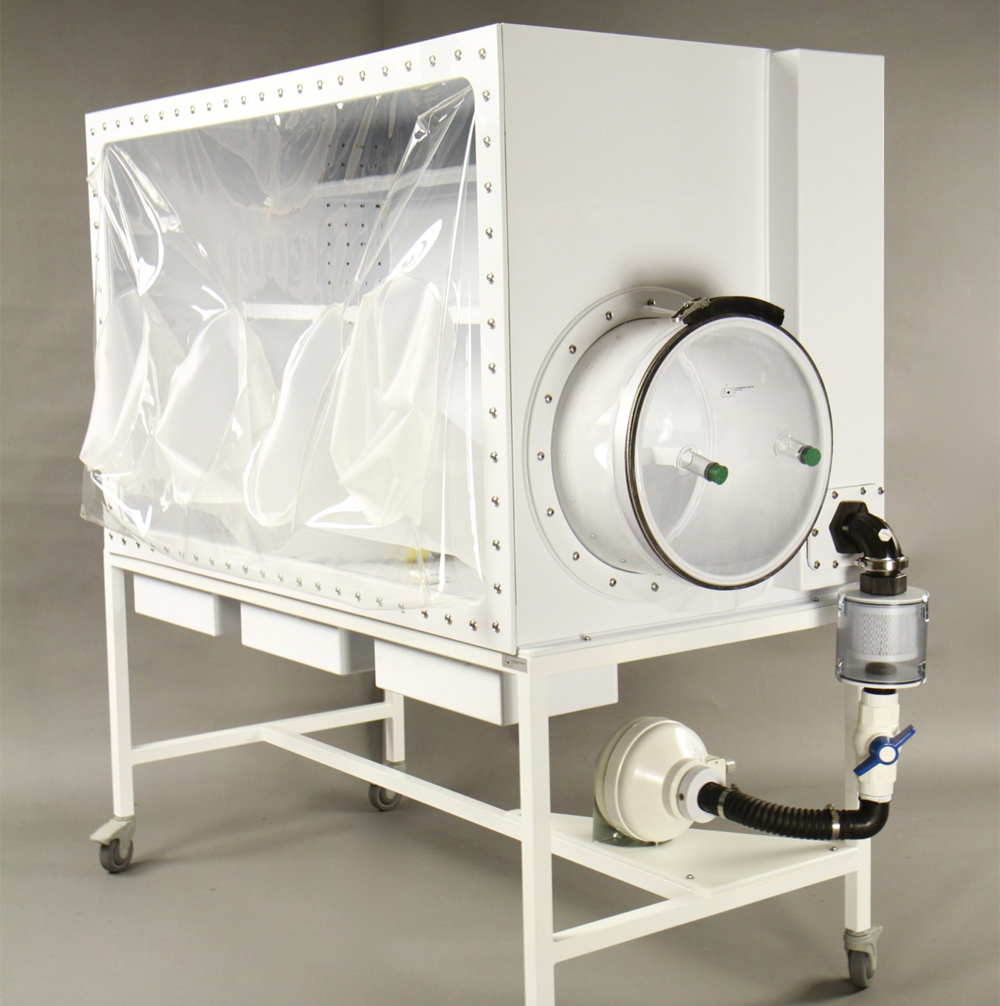

CBC Semi-Rigid Isolator Systems come with either a conventional style port that uses flexible film caps or an acrylic clamping door system. CBC takes the time an effort to ensure security and provide functionality. First, CBC runs three welding passes on each seam and runs two-silicone cord sealing layers on the front panel to ensure an airtight chamber. CBC also creates adjustable internal shelving that can be used for both mouse and rat cages. CBC also has internal storage bins built into the floor for storing feed, bedding or supplies. CBC's glove panels extend out 4" to provide greater reach within the chamber.

Each system comes complete with the following:

  • Polypropylene chamber
  • Urethane film glove panel with 4" glove rings and Hypalon ambidextrous gloves
  • Convertible blower system
  • HEPA filter and housing
  • An 18" diameter polypropylene port system (your choice on type)
  • Storage bins
  • Strong 1 1/2" powder coated steel frame with two-way locking wheels
  • Magnehelic pressure gauge

Options:

  • Adjustable height table frames
  • Stackable systems
  • Adjustable internal shelving units
  • Internal light system
  • CBC can also provide an optional "Square Port” adaptor for clients that require this feature for Semi-Rigid isolator systems or clean hoods/clean benches.

Standard Sizes:

  • 36" L x 36" D x 36" H
  • 72" L x 36" D x 43" H
  • 96" L x 36" D x 43" H
  • Custom sizes available on request

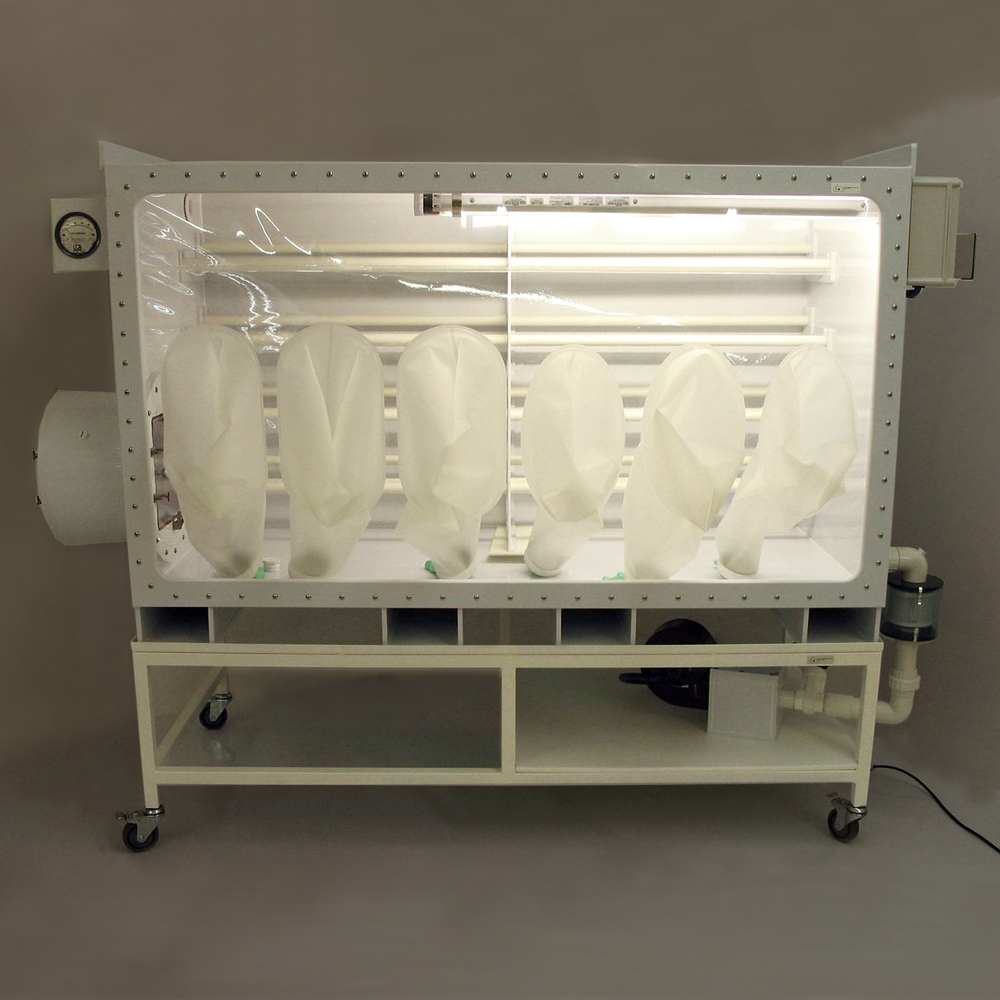

96" L x 36" D x 43" H Semi-Rigid Isolator

With Internal Lighting System  Read more

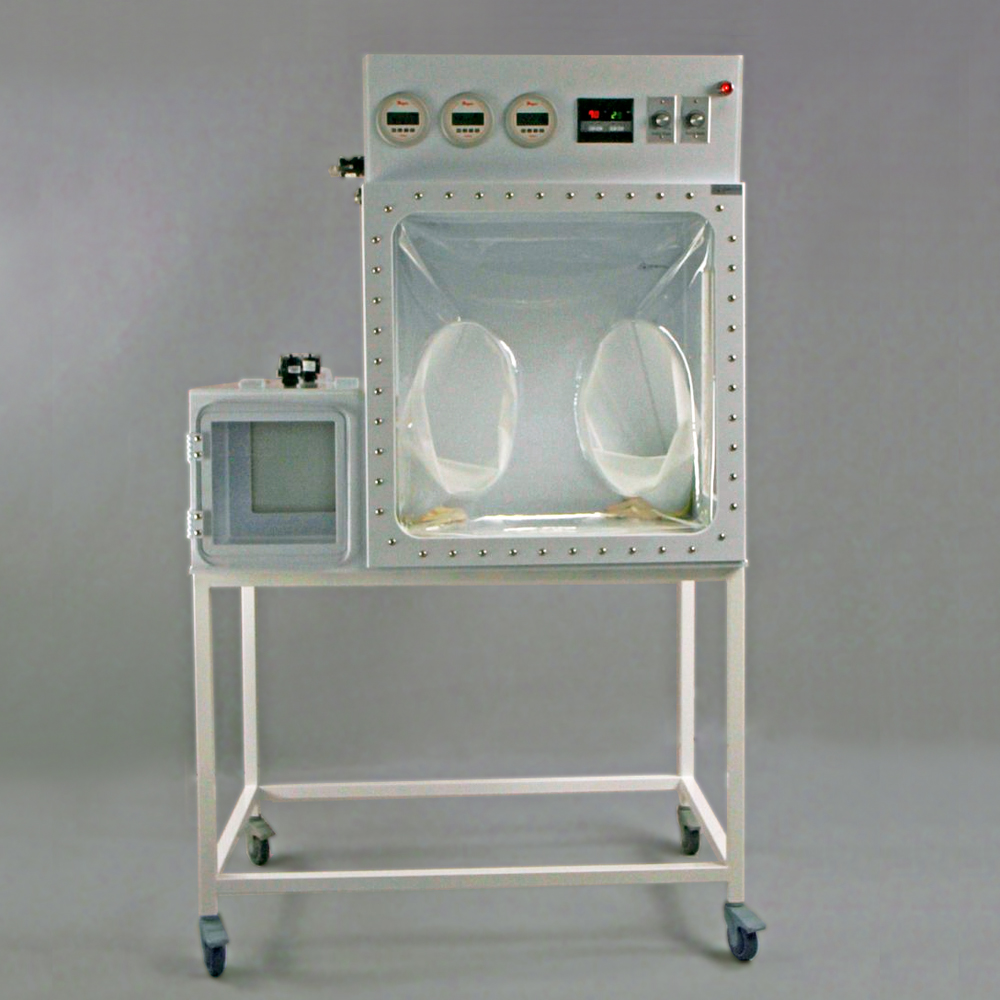

36" L x 36" D x 36" H Semi-Rigid Isolator

CBC also makes a side-by-side 36" L x 36" D x 36" H semi-rigid isolators, and will work with you to design an isolator that meets your specific needs.  Read more

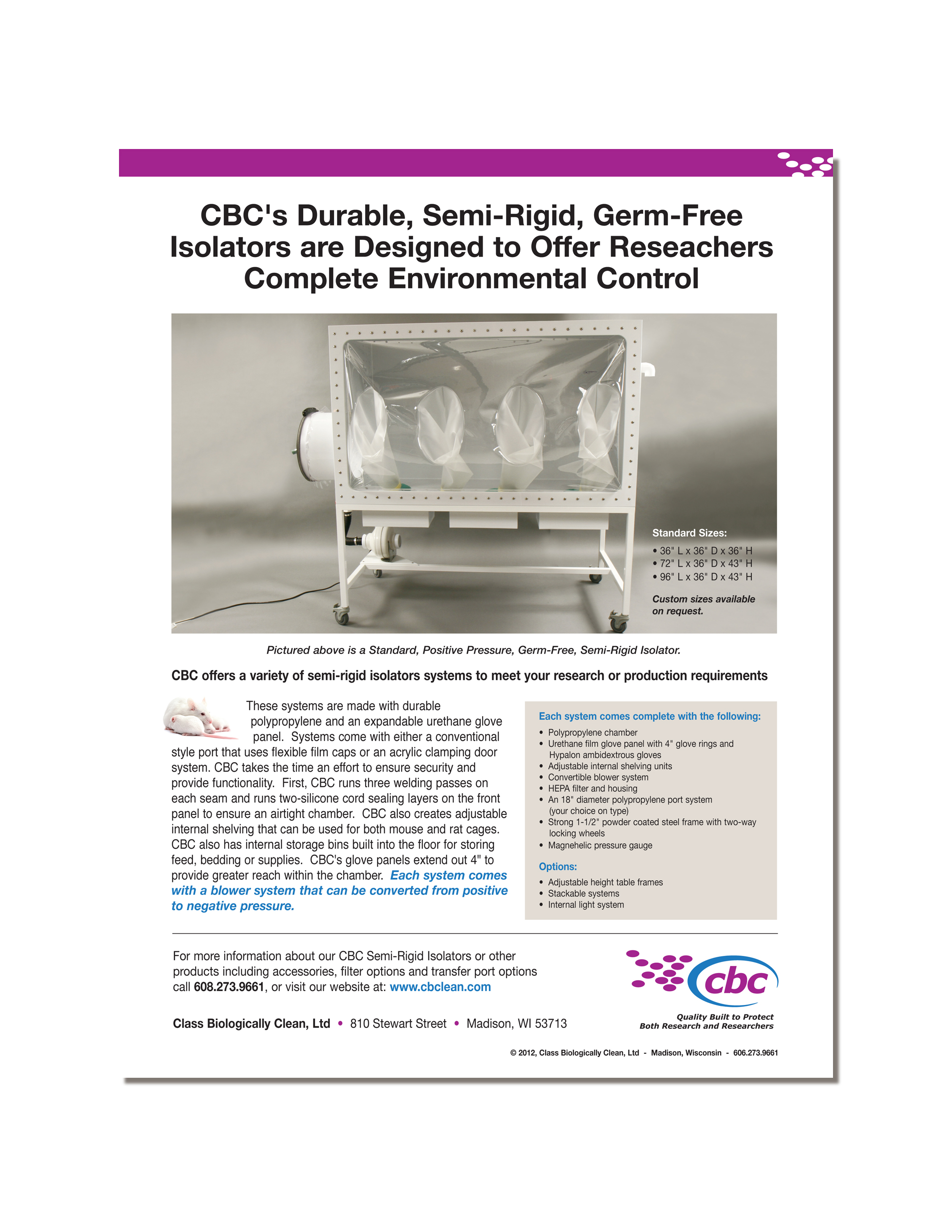

Download Printable Flyer

Download a printable flyer about the CBC Semi-Rigid Isolator System.

Download Printable PDF

Download Printable (EU) PDF

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Other CBC Animal Research Isolators:

CBC's single-tier flexible film isolator starter lab for gnotobiotic mice and other rodents.
Single-tier Isolator Starter Lab

A germ-free, gnotobiotic, flexible film isolator system with all of the hardware and components necessary for assembly.  Read more

Positive Pressure or Negative Pressure
CBC's double-tier flexible film isolator starter lab for germ-free, gnotobiotic mice or other rodents.
Double-Tier Isolator Starter Lab

A germ-free, gnotobiotic, flexible film isolator system with all of the hardware and components necessary for assembly.  Read more

Positive Pressure or Negative Pressure
CBC Quad Isolator Systems maximizes lab space and allows researchers to conduct four different experiments with germ-free, gnotobiotic mice or other rodents at one time.
Quad Isolator

Four (4) independent isolators in one footprint allows you to conduct four different experiments at one time. .  Read more

Positive Pressure or Negative Pressure
CBC 32- or 50-cage germ-free, breeder isolators for gnotobiotic mice and other rodents with polypropylene holding box.
Breeder Isolator

Breed your own colony of germ-free rodents with CBC's germ-free, flexible film, breeder isolator with polypropylene holding box.  Read more

32- or 50-cage Isolators
CBC small isolator systems for lab transport or gnotobiotic animal quarantine.
Quarantine/Transport Isolator

Ideal for use as lab transport or animal quarantine. Avoid putting the health and well-being of their research animals in jeopardy when adding new animals to the colony.  Read more

3'X2'X'2' Flexible Film Isolator
CBC  positive pressure, flexible film, germ-free surgical isolator systems.
Surgical Isolator

Positive pressure, flexible film, germ-free surgical isolator systems (optional microscope attachment and dip tube available).  Read more

4' x 2' x 2' – Custom Sizes
Original lap-seam seal flexible film, germfree isolator.
Manufacturing high quality, flexible film isolators for universities, researchers and germ-free animal producers since 1978.
CBC Semi-Rigid Isolators are designed to offer researchers complete environmental control for gnotobiotic research with mice or other rodents.

Semi-Rigid Isolator

Can be converted from positive to negative pressure.

72" L x 36" D x 43" H
