Designed to Offer Researchers Complete Environmental Control.

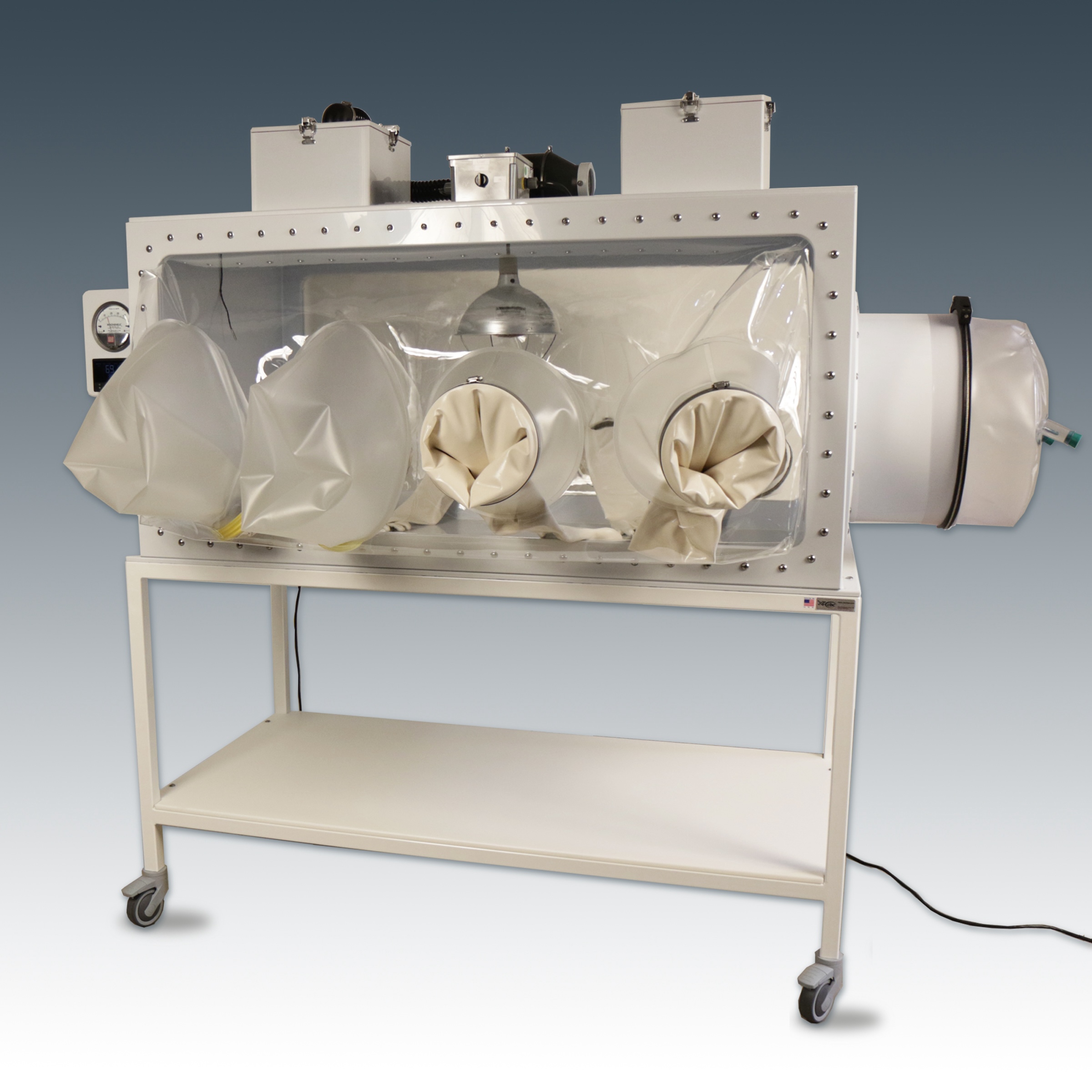

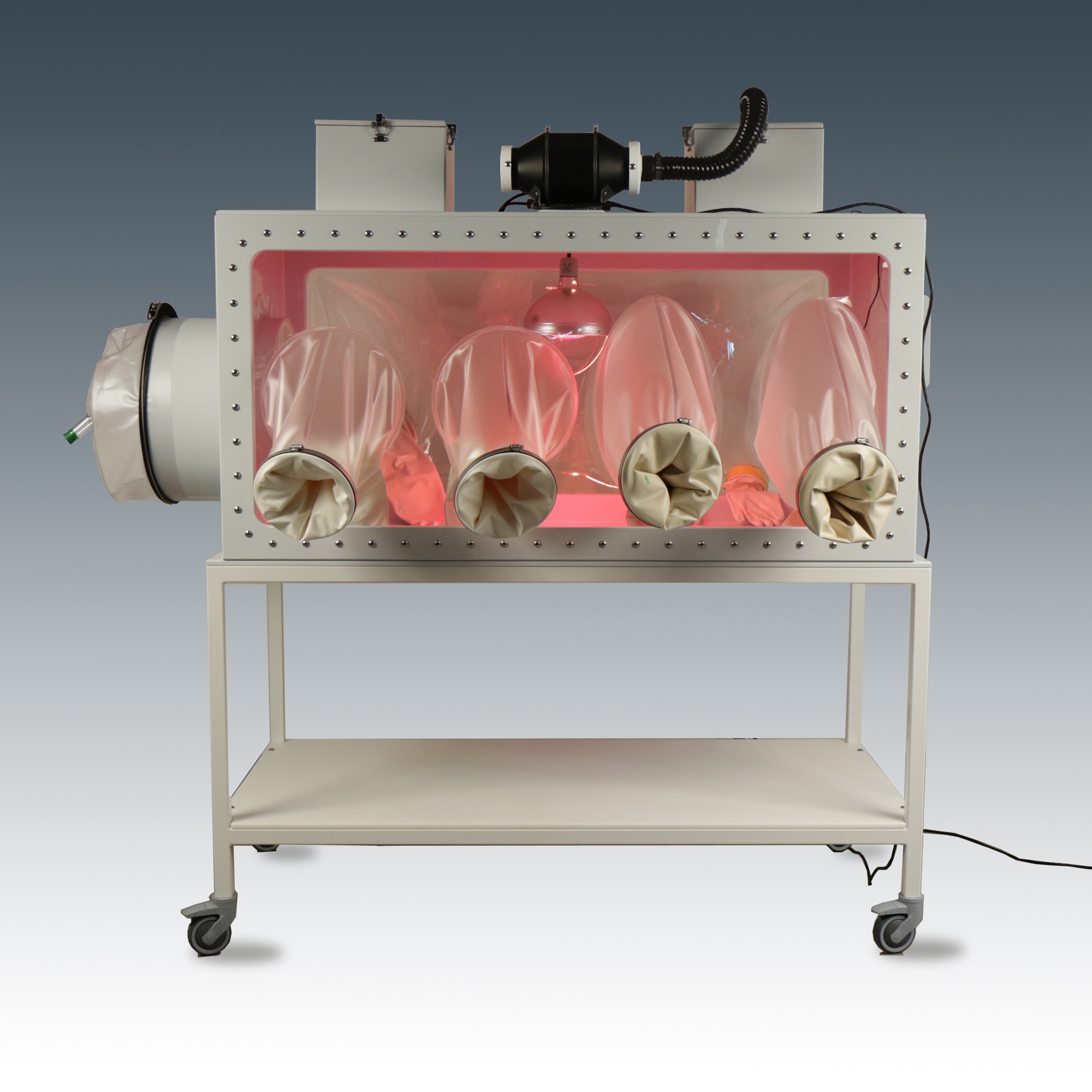

Semi-Rigid Poultry Isolators


Semi-Rigid Poultry Isolator Systems


Each system comes with a blower system that can be converted from positive to negative pressure.

These systems are made with durable polypropylene and expandable urethane glove panels.

Controlled environment isolators for poultry.

Semi-Rigid Poultry Isolators

Positive Pressure Negative Pressure

For research that requires a controlled environment.

Semi-Rigid Poultry Isolators are Designed to Offer Researchers Complete Environmental Control.


CBC takes the time an effort to ensure security and provide functionality. First, CBC runs three welding passes on each seam and then runs two-silicone cord sealing layers on the front and back panels to ensure an airtight chamber — protecting both research and researchers. What's more, CBC's glove panels extend out 4" to provide greater reach within the chamber.

Each system comes complete with the following:

  • Polypropylene chamber with 20 mil urethane glove panels.
  • Glove Panels on the front and back panels.
  • Choice of glove extension.
  • (4) pairs of 15 mil Hypalon/CSM dry box gloves with glove ring kit for attaching gloves to isolator (other types available).
  • HEPA filter inlet and outlet.
  • Adjustable speed control for blower.
  • Internal pressure gauge.
  • (1) 18" removable polypropylene transfer port.
  • Internal heat lamp with automatic on/off control.
  • (1) 18" internal port cap.
  • (1) 18" external port cap.
  • (1) 18" patent clamp.
  • (1) rubber band for attaching inside transfer port cap.
  • (2) 1" neoprene stoppers (other types available).
  • 1-1/2" powdered coated steel frame.
  • Two-way locking casters.
  • High-density polyethylene lower shelf.

Options:

  • Custom Sizes.
  • 12" Transfer port.
  • Adjustable lift table.
  • Dip tank.
  • VHP sterilization attachments available.
  • Heating pads sandwiched between the lower polypropylene chamber floor and the powdered coated steel frame shelf. Radiates heat upwards into the isolator chamber.

Electrical Requirements:

  • 120 volts.
  • 60 Hz.
  • 18 Watts
  • 29 dBA

Poultry Isolator Features:

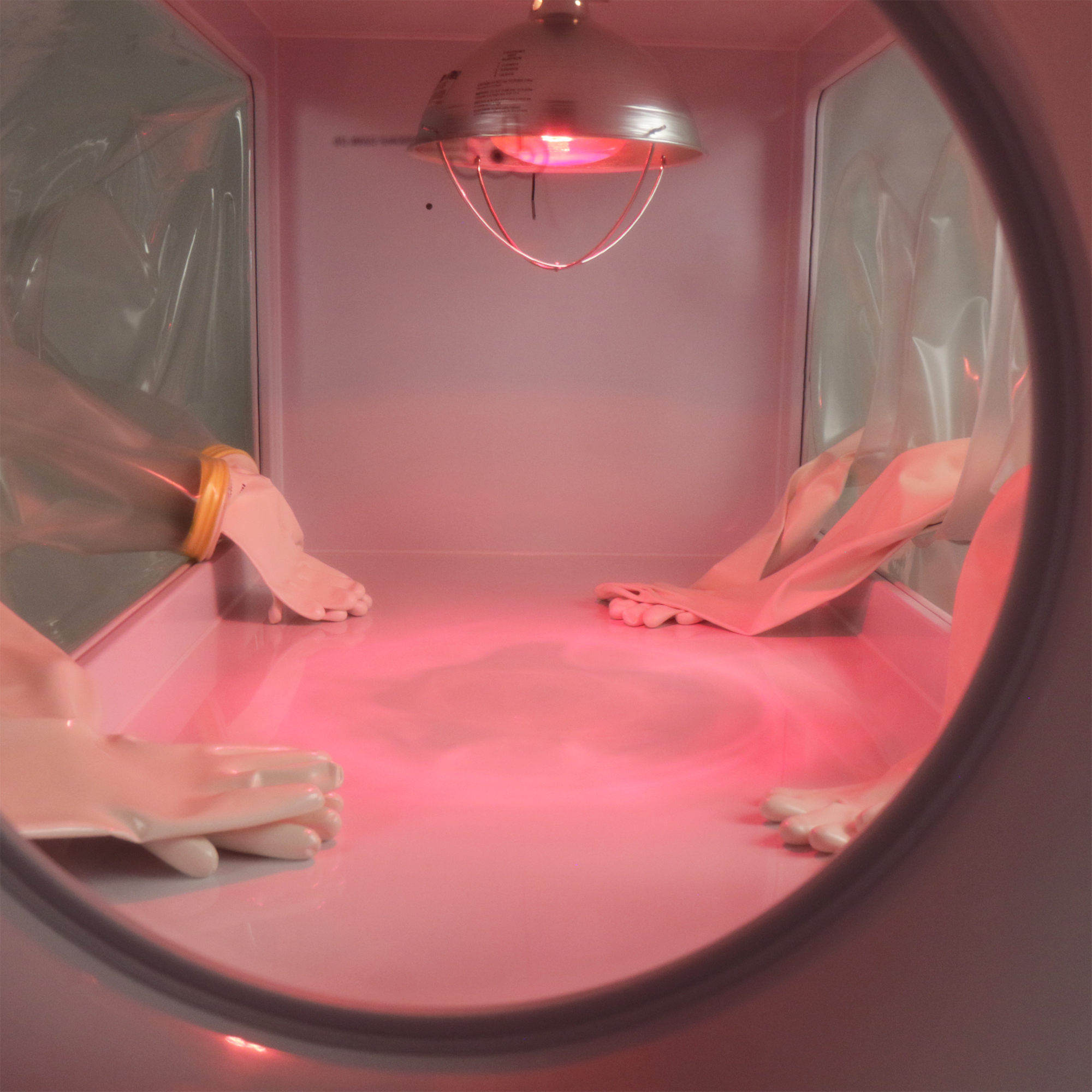

View of 4 pairs of CBC Poultry Isolator gloves inside isolator.

View of 4 pairs of CBC Poultry Isolator gloves inside isolator.

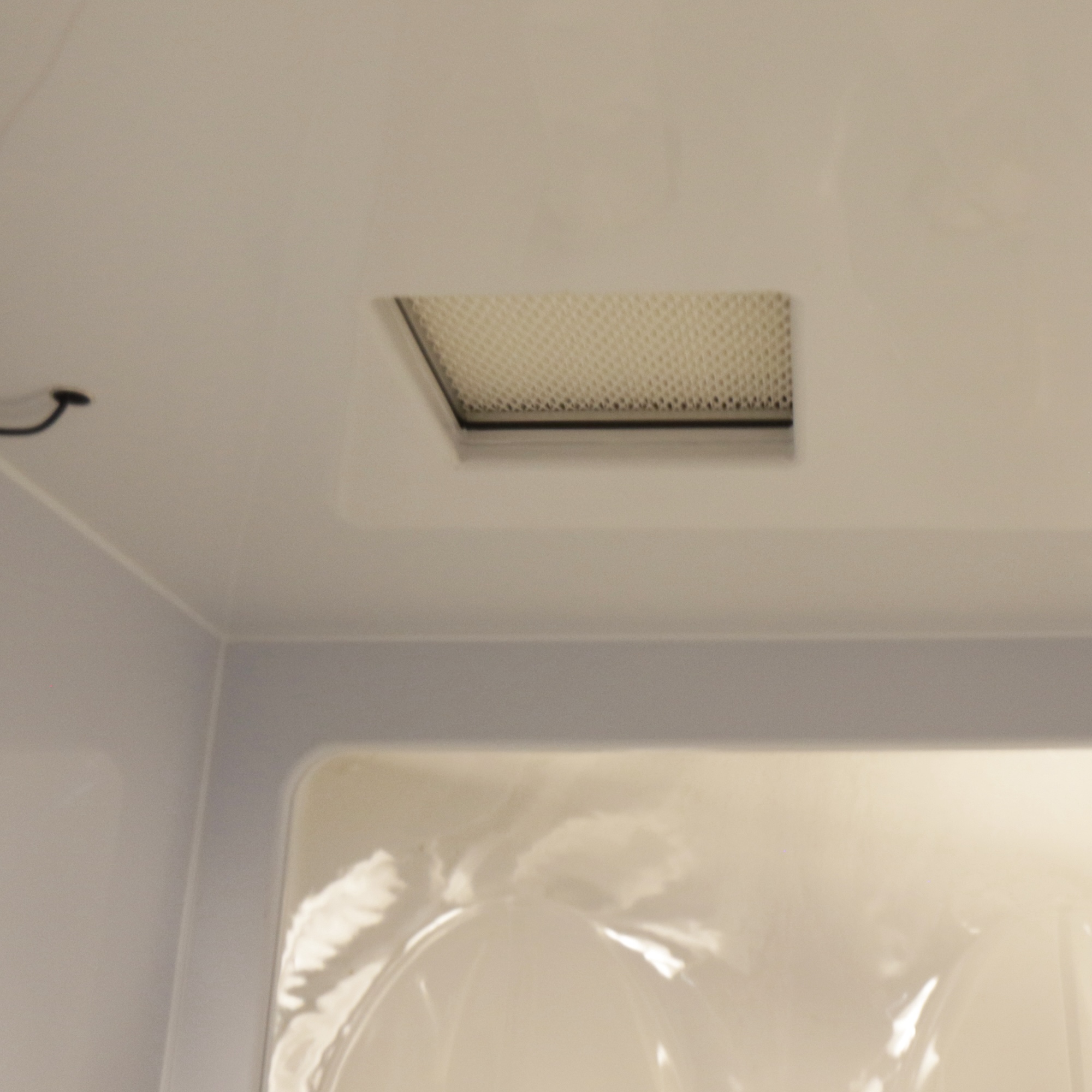

View of one of two CBC Poultry HEPA Filters.

View of one of two CBC Poultry HEPA Filters.

CBC's glove panels extend out 4

CBC's glove panels extend out 4" to provide greater reach within the chamber.

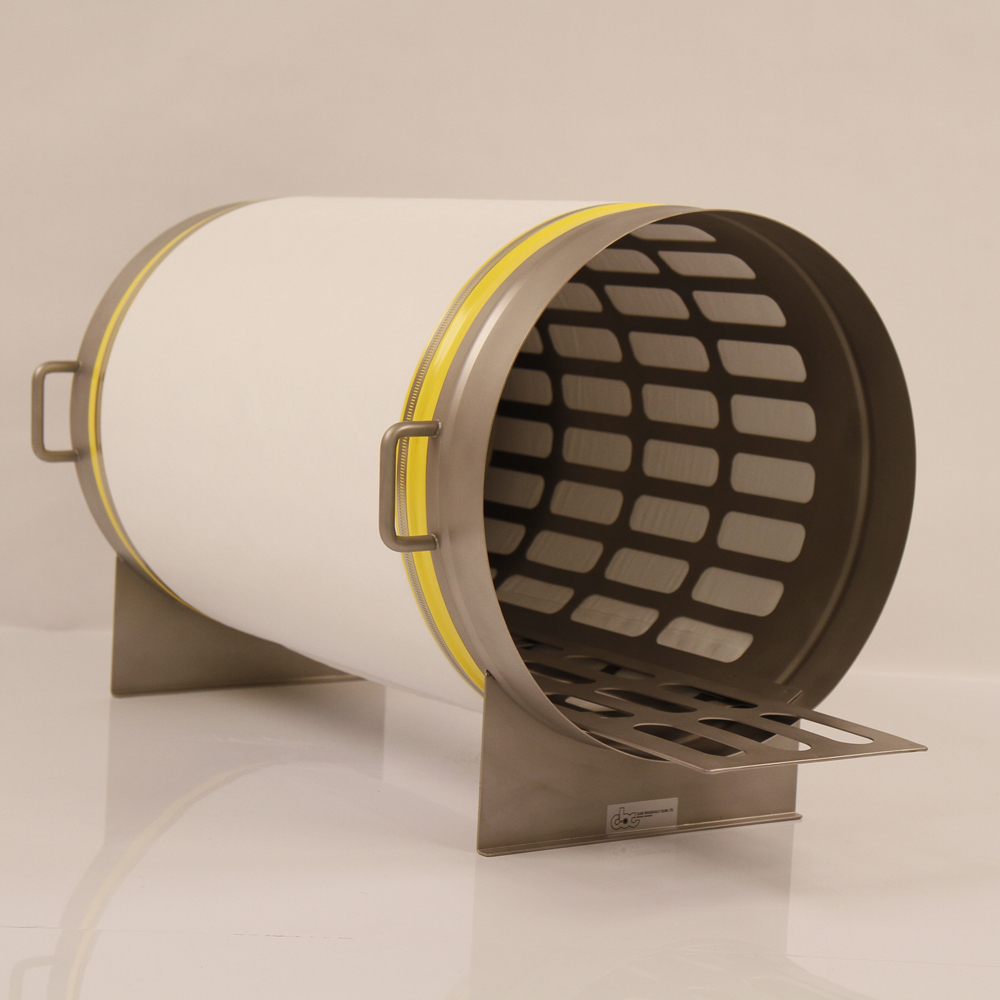

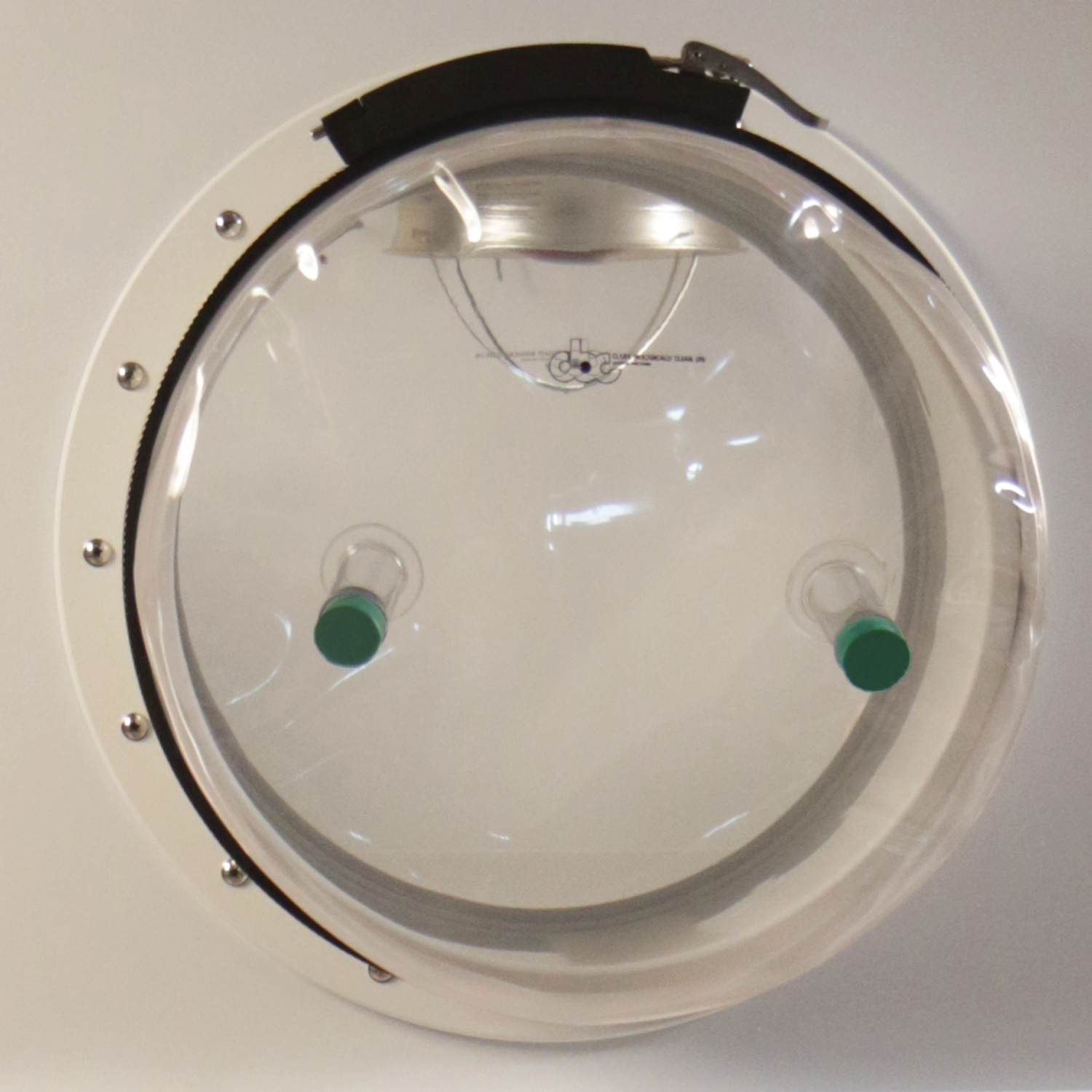

View of removable 18 inch diameter polypropylene transfer port.

View of removable 18" polypropylene transfer port.

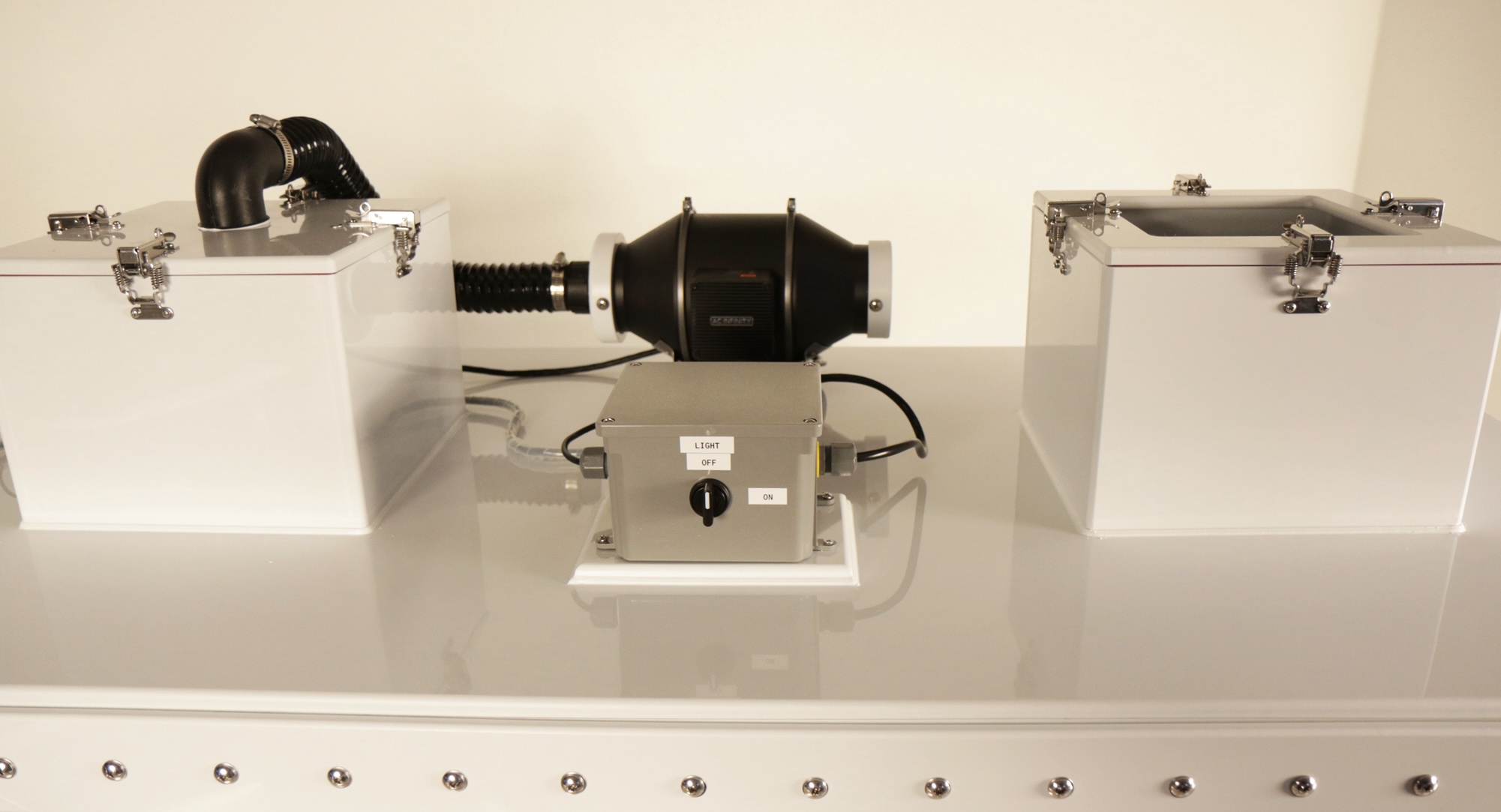

View of Poultry Isolator blower motor, light switch and filter box on top of isolator.

View of Poultry Isolator blower motor, light switch and filter box on top of isolator..

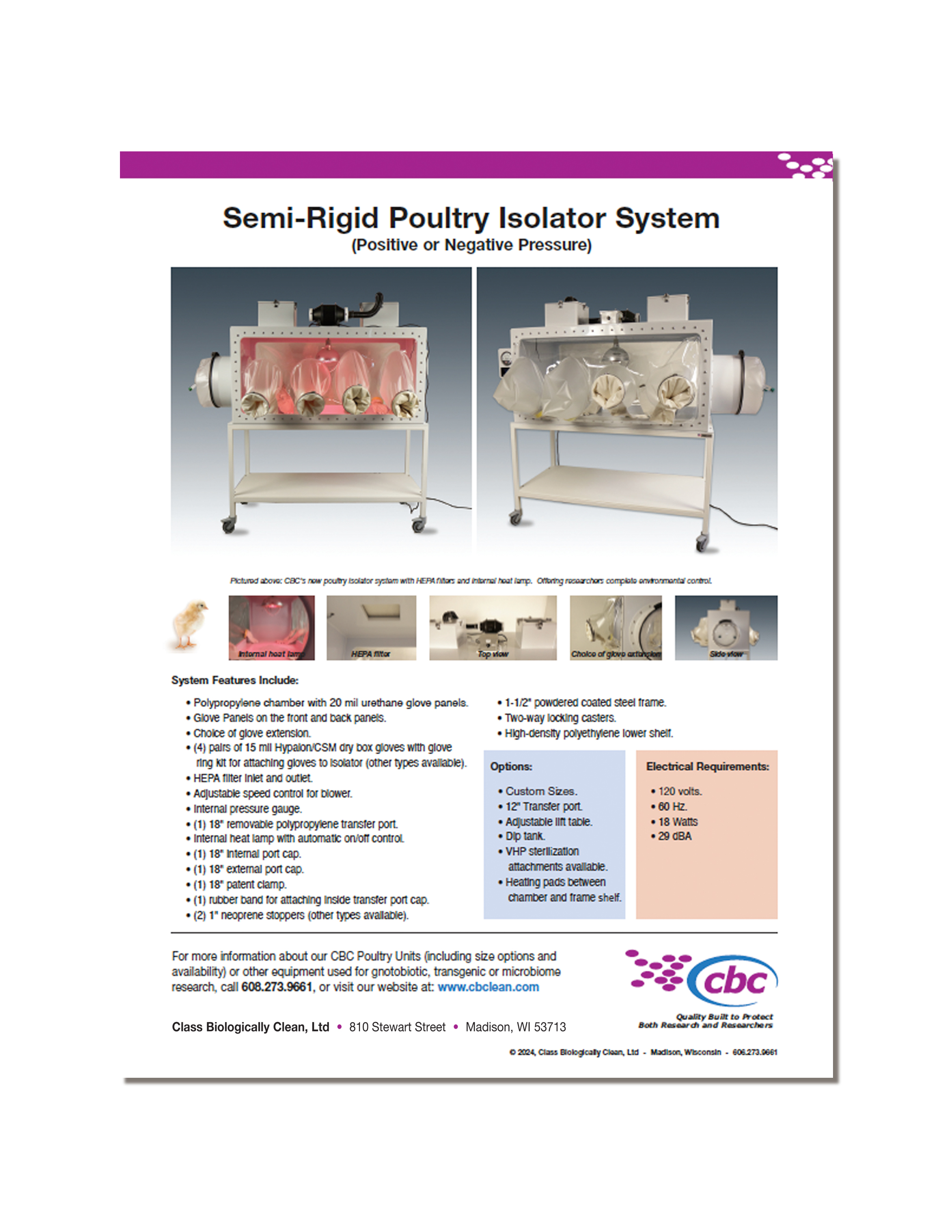

Download Printable Flyer

Download a printable flyer about the CBC Semi-Rigid Poultry Isolator System.

Download Printable PDF

Download Printable (EU) PDF

The CBC Difference

The CBC difference includes our original lap-seam sealing process and the use of 20 mil. polyurethane material that is almost indestructible and helps ensure against contamination due to accidental puncture or tear.

CBC uses a highly durable "lap seam" seal for the majority of our seams, and an even superior "cut/weld/strip seam" seal for high risk areas. Because your reputation, research or production should not risk being compromised!    (See, "Pull Test" and "Puncture Demonstration" videos below.)

The CBC Lap-Seal Seam "Pull" Test

Single Seam Seal vs. CBC Lap Seal Seam  Read more

Because your reputation, research or production should not risk being compromised!
20 mil. Polyurethane Puncture Demonstration

CBC's 20 mil. polyurethane material is almost indestructible and helps ensure against contamination due to accidental puncture or tear.  Read more

Because your reputation, research or production should not risk being compromised!

Accessories and Components:

Transfer Port Caps.

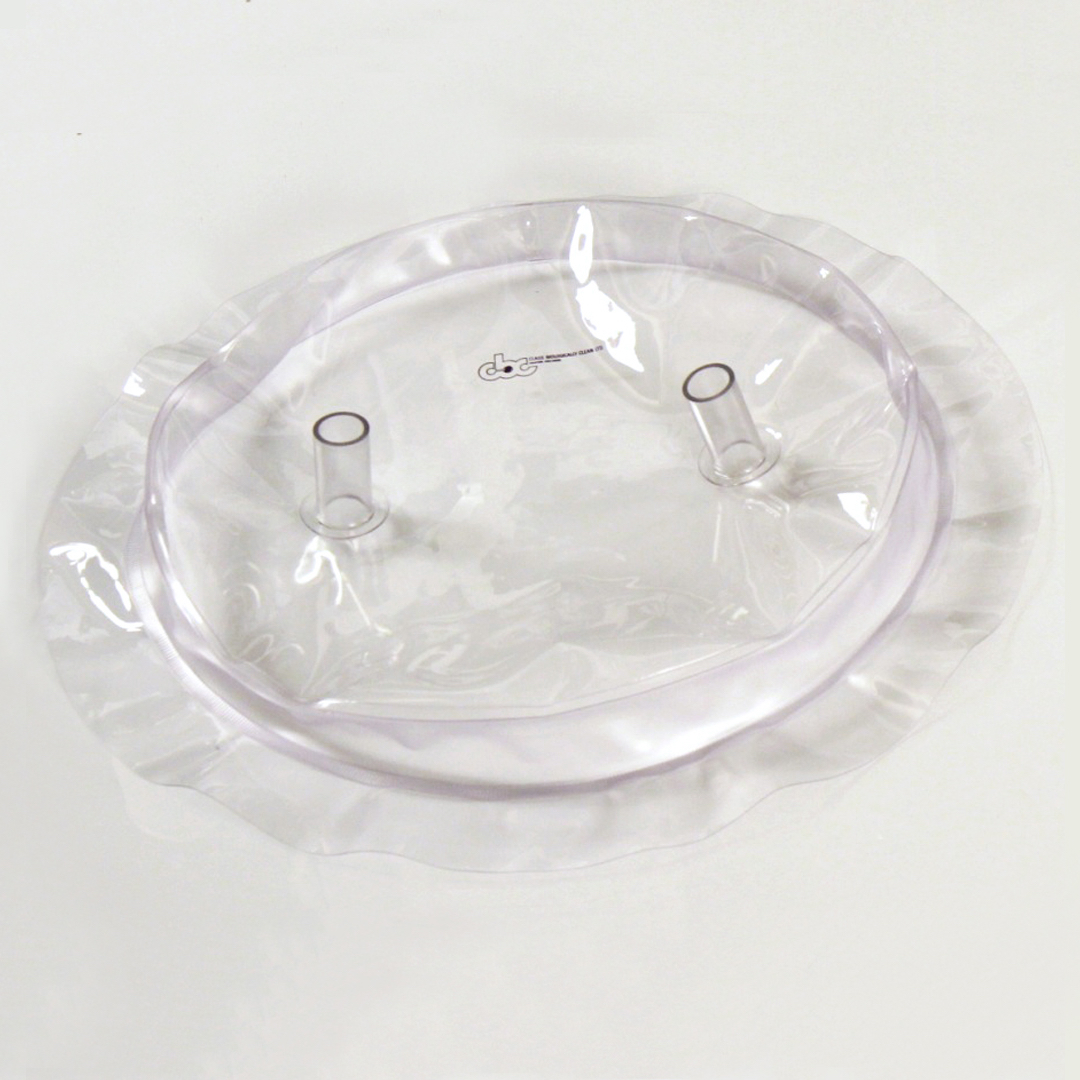

Transfer Port Caps

Transfer Port Caps with and without flanges and with and without nipples.  Read more

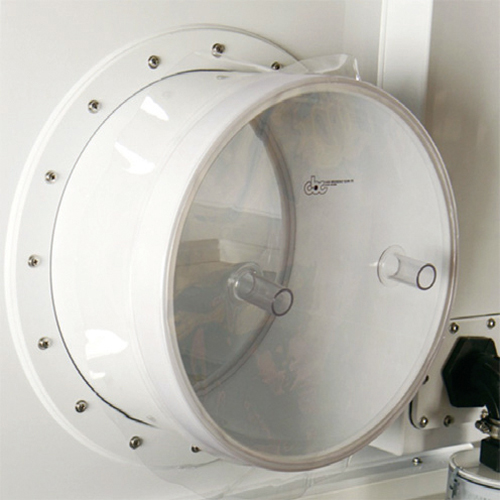

CBC's internal and external port caps.
CBC Patent Clamp for quick attaching transfer port caps.
CBC Patent Clamp

CBC's Patent Clamp for quickly, and securely attaches transfer port caps.  Read more

Patent Clamp with neoprene-gooved band reduces need for vinyl tape
