For use with Small Isolator Canopies

Three Inch Diameter Isolator Filters

More Information

3" (Three Inch) Diameter Gnotobiotic Isolator Filters

For use with Small CBC Isolators such as the Quad Isolator System and "Space Saver" Isolators.

The "Input" Filters and "Outlet" Filter stands are interchangeable. NOTE: CBC's 3" diameter filters are comparable to the 3" diameter filters formerly sold by Standard Safety's CEP (Controlled Environment Products) division.

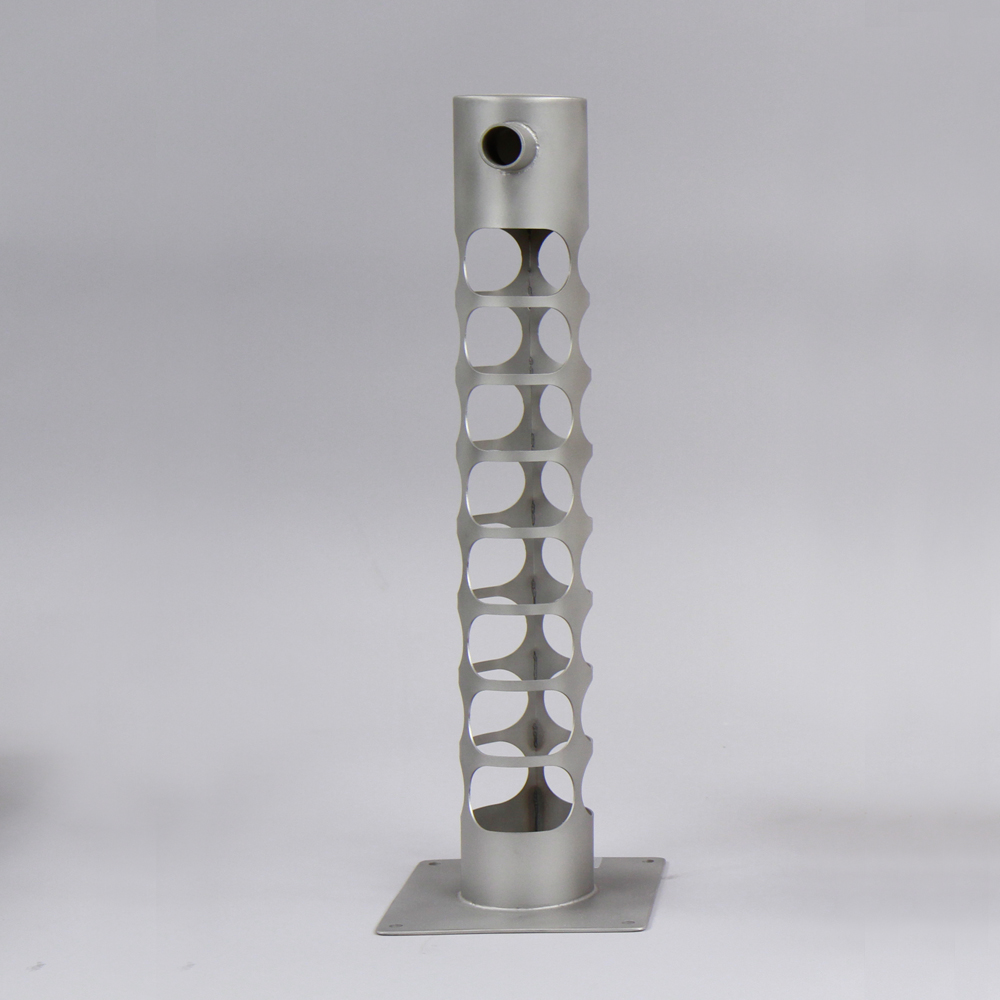

Pictured is a 3 inch (diameter) filter used in our smaller isolators like our quad isolator system and quarantine isolator to maintain a controlled, uniform environment. The filter shown (with and without filter media) has a lower inlet port.

3" (Five Inch) Diameter Isolator Filters

The "Input" Filters and "Outlet" Filter Stands are interchangeable.

For use with small CBC gnotobiotic isolators under 4' in length such as the CBC Quad Isolator System and "Space Saver" Isolators.

Comparable to the 3" diameter filters formerly sold by Standard Safety's CEP (Controlled Environment Products) division.

3" Diameter Filters come completely assembled and wrapped with DW4 filter media.

Filters are shipped "autoclave ready". Includes: DW4 filter media and filter cover. Parts also sold separately.

(Complete unit) 3" D x 19" H inlet (supply) filter with (3) wraps of filter media.
(Complete unit) 3" D x 19" H outlet (exhaust) filter with (2) wraps* of filter media.
3" D x 19" H Replacement Filter Cover

* Note: Outlet (exhaust) filters on negative pressure isolator systems have (3) wraps of filter media.

Comparison of a CBC 3 inch diameter isolator filter to a CBC 5 inch diameter isolator filter.

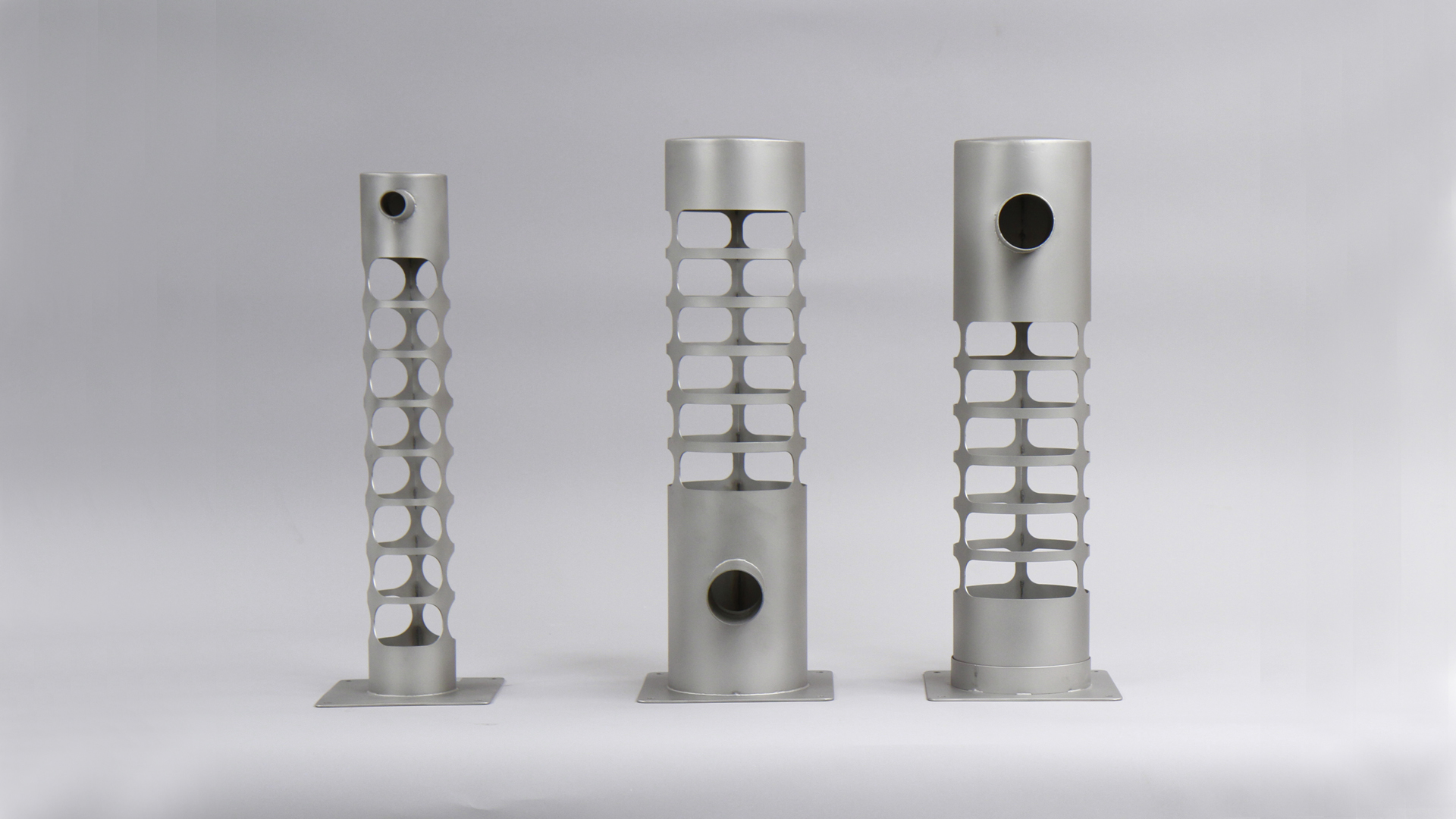

Above: Comparison of a 3" diameter isolator filter stand to 5" diameter isolator filter stands.

Other Filter Sizes:

5" D x 20" H inlet filter - Learn more
5" D x 20" H outlet filter - Learn more
5" D x 20" H Filter cover
5" D x 32" H inlet filter
5" D x 32" H outlet filter
5" D x 32" H Filter cover
Custom sizes available on request

Unwrapped five inch diameter inlet and outlet isolator filters.

Above: Unwrapped 5" diameter inlet and outlet isolator filters.

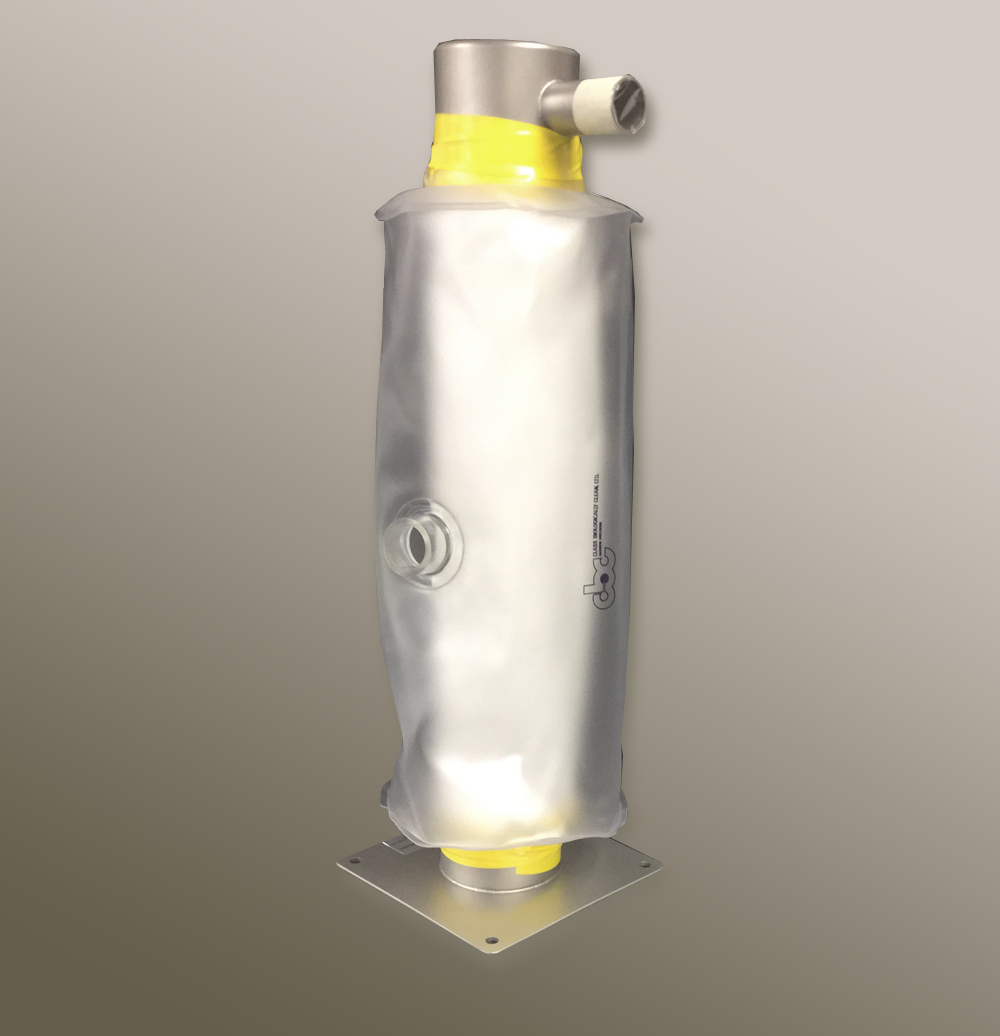

Above: 3" diameter isolator filter cover. Made of 20 mil. frosty vinyl with double-strip seam seal. (Item # 2150217)

Download a printable flyer about CBC's Sterilizing Cylinders. Click here to download flyer.

Download Printable Flyer

Download a printable flyer about CBC's Sterilizing Cylinders.

Download Printable PDF

Download Printable (EU) PDF

Other CBC Filters:

5 inch Diameter Isolator Filters for CBC Quad and Quarantine Isolators.

5" Diameter Isolator Filters

Standard on most CBC Isolator systems. Read more

With lower inlet port and and upper outlet port. Custom sizes available on request.

HEPA Filters

For gnotobiotic isolators, cleanrooms and containment units. Read more

5" (diameter) x 5" (length), 5" (diameter) x 8" (length) round sizes. Custom square sizes.

Accessories and Components:

Pre-cut Filter Media

Save Material. Save Time. Read more

DW4 filter media is precut to width to fit sterilizing cylinders and isolator filters.

Mylar Film

Save Material. Save Time. Read more

Mylar film in rolls and precut disc shapes to cover open end of sterilizing cylinders and filter stands before autoclaving. Precut mylar discs save time!

Vinyl Tape

1" wide. 36 yards. Read more

For wrapping filter media around sterilizing cylinders and filters.

Mylar Tape
